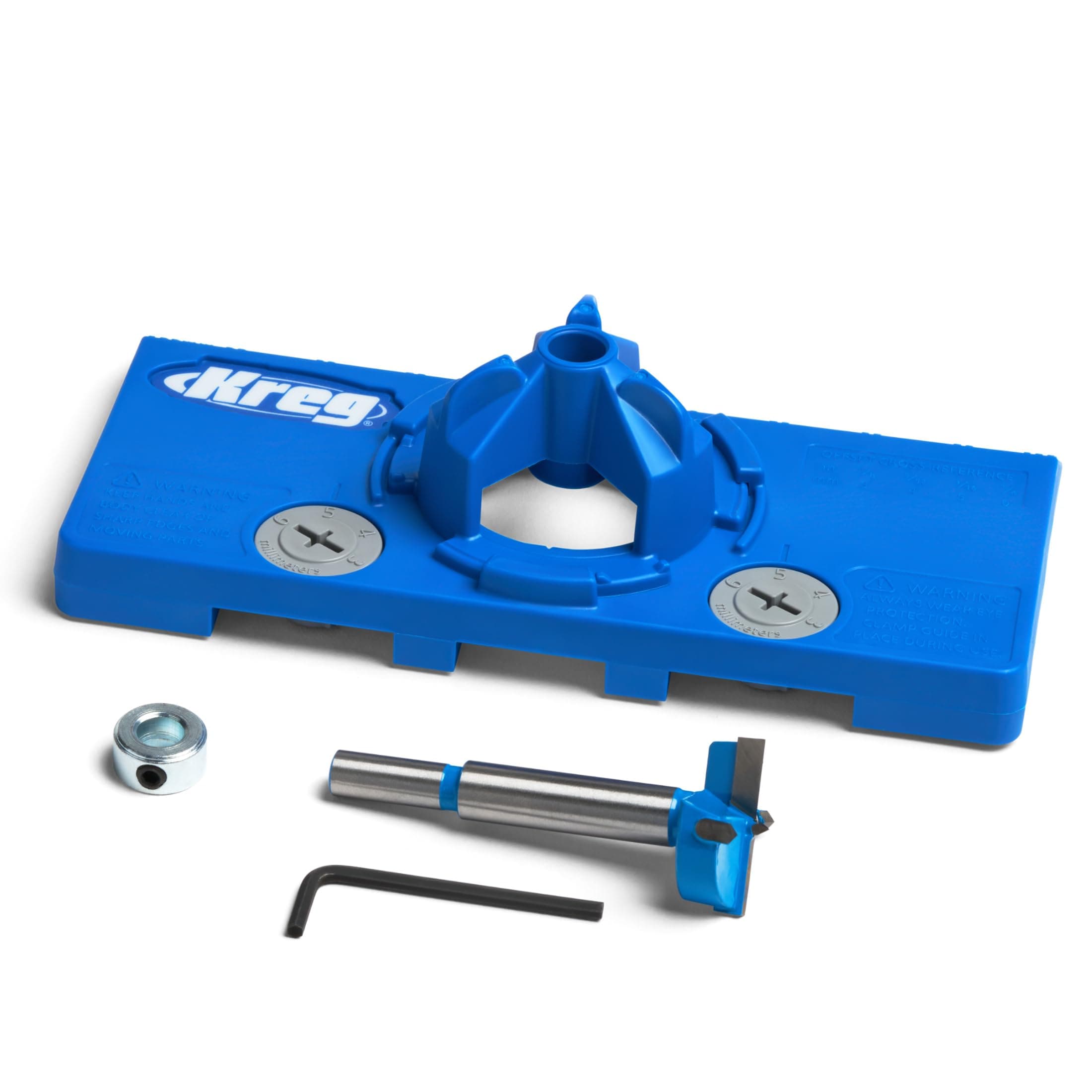

Concealed Hinge Jig - 35mm Cup Drilling Jig - Adjustable Cabinet Door Installation Tool - KHI-Hinge

I used the Kreg Concealed Hinge Jig for installing 35mm cup hinges on a few cabinet doors in my garage workshop. The jig is easy to clamp in place and the adjustable settings make it simple to get consistent hole placement for both face-frame and frameless cabinets. Drilling the cups was straightforward with a standard 35mm bit, and the depth stop worked well to prevent drilling too deep. The build feels solid enough for hobby use, but the plastic parts aren’t as robust as I expected for the price. Alignment can shift slightly if you don’t clamp it tightly. Overall, it gets the job done for occasional cabinet door installations and is a useful tool if you don’t need professional-level precision every day.

I watched so many videos on this and was scared to drill such big holes in my old cabinets, but it worked like a charm once I used a good drill. Just a mom with a plan, and now feel like I should go by myself a tool belt!! Used with cabinet door jig to hold up the door while I hung it. Money well spent!!!

this is a great product

Bought this to install some shop cabinet doors. I was blown away by how easy it is to install the hinges and do so consistently. The instructions are super easy. It's simple to adjust for different hinge specifications. I highly recommend it.

I was going to build several cabinet doors to replace the ones in my Son's kitchen and I wanted to use concealed pocket hinges. I had never used pocket hinges before. After reading how to make the holes and how exact you needed to be in placement of the holes, fear started to take over. After researching, I found there were several jigs that you could buy to make the job a piece of cake. I have several other Kreg jigs and I am pleased with the quality and ease of use of them so I decided to spend a little more money and purchase this one. I am pleased to say that it work perfectly and I was able to get all the door holes drilled out and the hinges in place with perfect alignment. The unit comes with instructions on how to set the jig based on the hinge manufacturer's recommendations for placement. This was very easy to do; if the hinge company does in fact provide instructions for this. If they don't, then you are going to have to do some trial and error on some scrap wood in order to find the exact spacing for the holes. The only issue I have with this unit is that Kreg uses a proprietary sized shank for the 35mm Forstner bit. So you can't just use an off the shelf 35mm Forstner bit when this one wears out. You have to buy a Kreg bit. Also, this has a depth-stop collet that uses a set screw to hold it in place. Somewhere during the time I was using the bit, the screw must have worked itself out and I lost it. I had to find a compatible sized screw and cut it to length to use as the set screw and this works. If you find that you have to do this, make sure that the screw is cut short so it doesn't extend past the collet as the weight of the screw outside the collet boundry will cause the bit to become unbalanced and wobble when drilling.

This tool makes cabinet work so much easier! This is my second one because somehow I lost the set screw for the bit depth.

Good product

The item arrived on time, well packed and in excellent new condition. Had a whole kitchen full of cabinet doors to do. 63 Blum soft close hinges. I suppose I could have done without this tool and I almost did try but I'm sure glad I pulled the trigger on the buy. I built the shaker, overlay cabinet doors with Poplar frames which is a hardwood but not too much harder than pine. Nevertheless, I didn't expect the included forstner bit to survive the whole job. Not only did it survive, it's still useable now. Where I didn't make any mistakes of my own, I ended up with clean, well positioned, at the right depth hinge pockets with pilot holes for the screws. I got the job done at a quarter of the time it would have taken me had I not made the purchase. Even at minimum wage it paid for itself. Don't struggle without it. Recommended. Enjoy!

Super Artikel, super, um schnell und präzise Topfbohrungen auszuführen. Artikel ist sehr zu empfehlen. Schnelle Lieferung, rundum zufrieden. Danke!!!!

Conferma la reputazione del marchio. Semplice da usare, preciso .

Like all of the Kreg product. I Have purchased quality stand out

Funkar hur bra som helst

Sin duda los mejores productos que he comprado son los de Kreg muy buenos y facil.de.usar
