🚀 Elevate Your Mining Game!

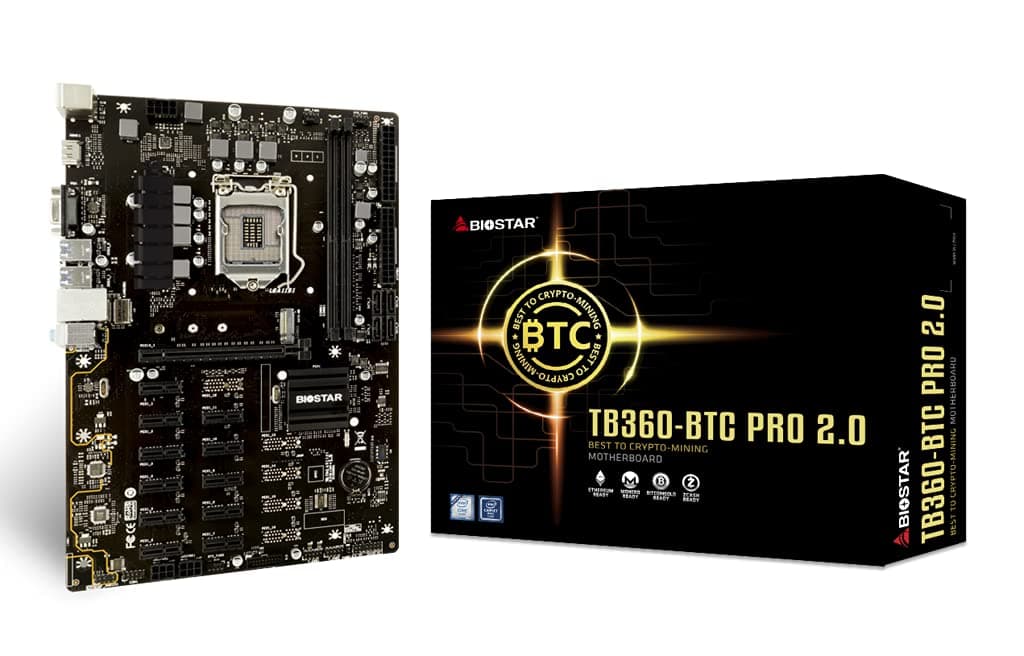

The TB360-BTC PRO 2.0 is a cutting-edge mining motherboard designed for high-performance cryptocurrency mining. It supports both 8th and 9th Generation Intel Core processors, features 12 PCIe 3.0 slots for extensive GPU support, and allows for a maximum memory capacity of 32GB with DDR4 technology. With M.2 SATA III connectivity and a robust Intel B360 chipset, this motherboard is engineered for efficiency and speed, making it an essential component for any serious miner.
Graphics Card Interface | PCI Express |
Memory Slots Available | 2 |
Number of Ports | 18 |
S/PDIF Connector Type | Optical |
System Bus Standard Supported | SATA 3 |
Number of Ethernet Ports | 1 |
Total Number of HDMI Ports | 1 |
Total PCIe Ports | 12 |
Total SATA Ports | 4 |
USB 2.0 | 2 |
Total Usb Ports | 2 |
Memory Clock Speed | 2666 MHz |
Platform | Windows 10 |
Processor Series | Core i7 |
Memory Storage Capacity | 32 GB |
Ram Memory Maximum Size | 32 GB |
Main Power Connector Type | 24-Pin |
Processor Socket | LGA 1151 |
Compatible Devices | Personal Computer |
RAM Memory Technology | DDR4 |
Compatible Processors | 8th Generation Intel Core |
Chipset Type | Intel B360 |
Item Dimensions L x W x H | 10"L x 13"W x 3"H |
B**Z
It only work with less GPUS that it says
I know the item says that you can use up to 12 GPUs but the sad is reality is it doesn’t as soon u have seven started to give problems starting to crash for pretty much everything some of the GPUs start having problems. it could be a update or drivers issue sometimes when it crash it had a video problemsAnd a lot more issues. if you go to YouTube after you fix it three days later, and go back to the same thing all over. and sometimes it will take me hours to get her to run. other than that if you’re using it for less than six GPU, you’ll be good but you have to keep in mind that you’re gonna need more than one because sometimes you need to reset it by taking the battery out and put it back in another word reboot bios so my personal opinion this motherboard is for people who have a few GPUs and they wanna know how to get around the issues on windows 10 because even in hive OS is there a problem.
S**Y
BIOS RANDOMLY Detects GPU's. Sometimes 2 GPU's, 4, 12, 1, zero. Every reboot it's different.
DO NOT BUY THIS BOARD. If for some reason the manufacturer in some way for fashion decided to updated their BIOS in what should be an easy fix for them, then they might sell a ton of these boards.I have 100 GPU's and have been mining forever. I bought 3 of these, but they turned out to be a nightmare.The problem, is that when you have all GPU's plugged in (12 of them) and boot, it will randomly detect any number of GPU's. One boot, it could find all 12. The next boot, 1. The next boot, 5, 7, 4, 2, 9, etc. Only once was I able to get 12 GPU's detected. On average, I would say approx. 5 gpu's is the number you can expect but again, it's random... every... single... time. This happens on all 3 boards.I have flashed the BIOS with the latest, same problem. Tried ever single option and combination that anyone could ever think of... same problem.I reflashed the BIOS to the original BIOS.. same problem. I've gone headless, same problem. I chnaged the speed of each PCIE bus, disabled on board this, that, the other. Disabled the integrated NIC and used a USB NIC... due to it also using the pci bus.... long story, if you are a miner who uses more than just a couple of GPU's, DO NOT GET THIS BOARD.If the manufactuer would just simply update their BIOS to fix this problem, it would be godsend as physically, these are well made, good looking, packaged well, nice manual. They just dont work.If they updated their BIOS, I can promise you that they would make a killing as they are inexpensive and would be perfect for us miners.
Y**Z
Buen producto
Excelente producto lo recomiendo
J**L
Nice board, reasonably-priced 8 GPU Rack
This worked out great for me. A few things, initially I could only get 7 of 8 GPUs recognized. With all cards connected, I rolled the bios back to initial. Still only 7... updated bios to current, above 4G enabled, and had all 8. Did check cards in device manager and scan for hardware changes. Make sure your swap file is large enough. Use powered risers, and DO NOT connect AUXPWR1 AND AUXPWR2 by risers...they OUTPUT power. Seems like a bad idea. Aside from that, nice board. Does what it's supposed to do.
R**S
Great Board for Mining
This board worked great, no issues. I have two of them and both work great with many cards, I have used up to 8 so far on one board.
R**N
Not stable, avoid this board for mining
It might be a moot point now with the Ethereum merge, but avoid this board for mining. I suspect the BIOS is garbage even though I flashed and re-flashed. The board will not POST cleanly and I have to stand there and reboot and reboot and reboot until it eventually POSTs. Even then, once HiveOS starts loading GPU drivers it frequently crashes (30-50% of the time) and the reboot cycle starts again. I have other boards with the exact same power supplies, GPUs, etc, and they have practically zero issues POSTing or with HiveOS experiencing crashes.
L**.
HDMI not working, VGA is fine with 2048X2080
It says maximum memory is 32GB, but it actually is 64GB.I used two 32GB to make 64GB. it is working great.
T**S
Brand new not posting Zero Tech support & No one answers Board not listed anymore on seller site
Bought the board for the idea of all in one but its all nothing and I would not recommend this board not just because of my experience but multiple concerns. These concerns included no answer from the seller for my questions. Board not posting & second PCIE bank not powering. Followed directions to the T and never powered the output PCIE as you will fry your PSU or damage your Mobo. Glad I read all twice because there is no quick install sheet to warn you. I could not even get into the Bios as it would not post & I used all the spec components they listed. All items were brand new used. Replaced the 2600 mem with 2400 and still nothing. Then I tried to call Biostar USA to get some help and guess what, No answer from the tech line or the operator. Now I was really thinking what have I bought with Zero support. I spent time reviewing the manual over and over and then the web for issues and fixes. Lots of issues reported and other said they had a ok experience. However, I say do your research before buying to discern for your own. In the end, I have now ordered a board manufactured by another company with long standing support. I just can not take the chance of not getting any help or issues later reported. Again, there are those who have reported a great experience, so do your own research. Why decision finally came down to no one was there to answer the customer support line over three days fo trying. All three it went to voicemail. This was during their pacific time work hours as well. When I pushed the option to speak with the operator it would ring and then go to voicemail as well.One last note. The seller lists the BTC 360 prior board on their site as one of their products but no longer lists this one the 360 BTC Pro 2.0.I hope they take time to make some changes as they lost me forever as a customer
