Will this drive 3 monitors? the 40ac0135us has 2 dp outputs and 1 vga to do 3 monitors. would the 40an0135us be able to run 3 between the dp/hdmi?

There is a chapter in the user guide listing the "Maximum Resolutions" supported for 1, 2 & 3 external monitors: • One external monitor – DP:3840 x 2160 pixels / 60 Hz – HDMI:3840 x 2160 pixels / 30 Hz – Thunderbolt 3:3840 x 2160 pixels / 60 Hz – VGA:1920 x 1200 pixels / 60 Hz • Two external monitors simultaneous – DP1 and DP2 / HDMI:DP1 3840 x 2160 pixels / 30 Hz; DP2 / HDMI 3840 x 2160 pixels / 30 Hz – DP1 and Thunderbolt 3: DP1 3840 x 2160 pixels / 60 Hz; Thunderbolt 3 3840 x 2160 pixels / 60 Hz – DP1 and VGA: DP1 3840 x 2160 pixels / 30 Hz; VGA 1920 x 1200 pixels / 60 Hz – DP2 / HDMI and Thunderbolt 3: DP2 3840 x 2160 pixels / 60 Hz; HDMI 3840 x 2160 pixels / 30 Hz; Thunderbolt 3 3840 x 2160 pixels / 60 Hz – DP2 / HDMI and VGA: DP2 / HDMI 3840 x 2160 pixels / 30 Hz; VGA 1920 x 1200 pixels / 60 Hz – Thunderbolt 3 and VGA: Thunderbolt 3 3840 x 2160 pixels / 60 Hz; VGA 1920 x 1200 pixels / 60 Hz • Three external monitors simultaneous – DP1, DP2 / HDMI, and Thunderbolt 3: DP1 3840 x 2160 pixels / 30 Hz; DP2 / HDMI 3840 x 2160 pixels / 30 Hz; and Thunderbolt 3 3840 x 2160 pixels / 60 Hz – DP1, DP2 / HDMI, and VGA: DP1 3840 x 2160 pixels / 30 Hz; DP2 / HDMI 1920 x 1080 pixels / 60 Hz; and VGA 1920 x 1080 pixels / 60 Hz – DP2 / HDMI, Thunderbolt 3, and VGA: DP2 / HDMI 3840 x 2160 pixels / 30 Hz; Thunderbolt 3 3840 x 2160 pixels / 60 Hz; and VGA 1920 x 1200 pixels / 60 Hz

Looking for dock that will work with the lenovo p52. will this work???

Don't count on it. When I plugged with Lenovo docking station into either T3 port on my Lenovo Y740 laptop, it wasn't even recognized fully by Win10. Only the video ports worked. None of the USB ports worked, and the Ethernet port only had blinking LEDs, but never came up in Win10. Other brands of T3 devices work fine in those same T3 ports, just not this docking station.

will this charge the Lenovo c940? Currently have it plugged in, 2 screens work, but it isnt charging.

I have a c940 as well and mine doesn't charge the laptop either. There is no 230w cord. Did you buy the cord separately and did it work for charging the laptop or did you return the product as an overpriced hub?

solo conectando al equipo es cargar el Notebook con el mismo cable??

El cable thunderbold es la conexión a todo lo que trae el dock , carga batería, varios monitores o TV , cable de red, periféricos de almacenamiento etc.

Brand	Lenovo
Series	GENERATION 2 THUNDERBOT DOCK WITH 135W AC AND POWER CORD
Item model number	40AN0135US
Hardware Platform	PC
Operating System	Windows 10, Windows 7
Item Weight	2 pounds
Product Dimensions	8.66 x 3.15 x 1.18 inches
Item Dimensions LxWxH	8.66 x 3.15 x 1.18 inches
Color	Black
Power Source	AC & Battery
Manufacturer	Lenovo
ASIN	B07M6S81CM
Is Discontinued By Manufacturer	No
Date First Available	October 15, 2015

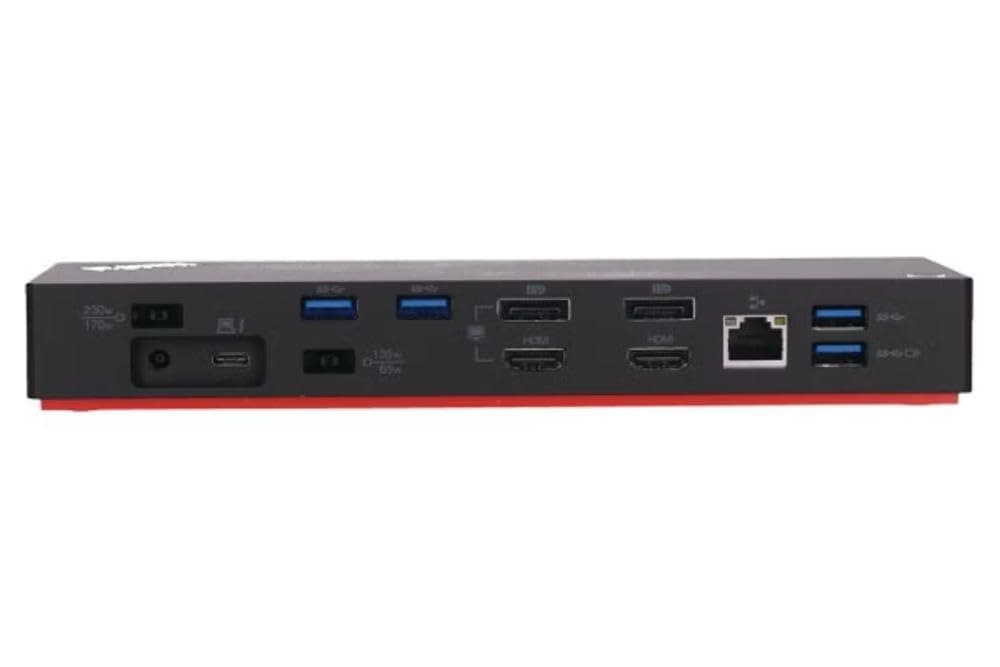

Lenovo Dockingstation Dock 135W - Thunderbolt 3 (G
