Which side of the breaker is the input Source and which side is connected to the Load?

The way I understand thing - there is no input or output. You could connect your wires the way it suits you most. With that being said, some people will put the "input" wires on the bottom and the "output" ones on the top. At least, that's what I did.

I would like a diagram of exactly how to wire this up. also, i see the seller mentioned a manual. can i request one also?

This breaker is as simple as it gets. As you look at the breaker there is a plus and minus indicators at the very top of the breaker. This is where your 12 volt supply connects. The 2 bottom terminals correspond directly to the 2 top terminals, positive on the right, negative on the left, top to bottom. These terminals on the bottom are what you connect the load you are protecting to, for example a solar charge controller or a solar array. The wiring schematic is located on the front of the breaker. I can't answer to the manual, I did not need one. You can go to You Tube and view a number of tutorials on these breakers.

ASIN	B096315TSJ
Best Sellers Rank	#251,134 in Home Improvement ( See Top 100 in Home Improvement ) #561 in Miniature Circuit Breakers
Brand	CHTAIXI
Brand Name	CHTAIXI
Circuit Breaker Type	Standard
Country of Origin	USA
Current Rating	63 Amps
Customer Reviews	4.6 out of 5 stars 1,496 Reviews
Item Dimensions D x W x H	3.6D x 7.5W x 8H Centimeters
Item Weight	6.35 Ounces
Manufacturer	CHTAIXI
Model Number	DZ47Z-63
Mounting Type	DIN Rail Mount
Number Of Poles	2
Number of Poles	2
Part Number	47Z63-2P1000
Product Dimensions	3.6D x 7.5W x 8H Centimeters
Voltage	1000 Volts

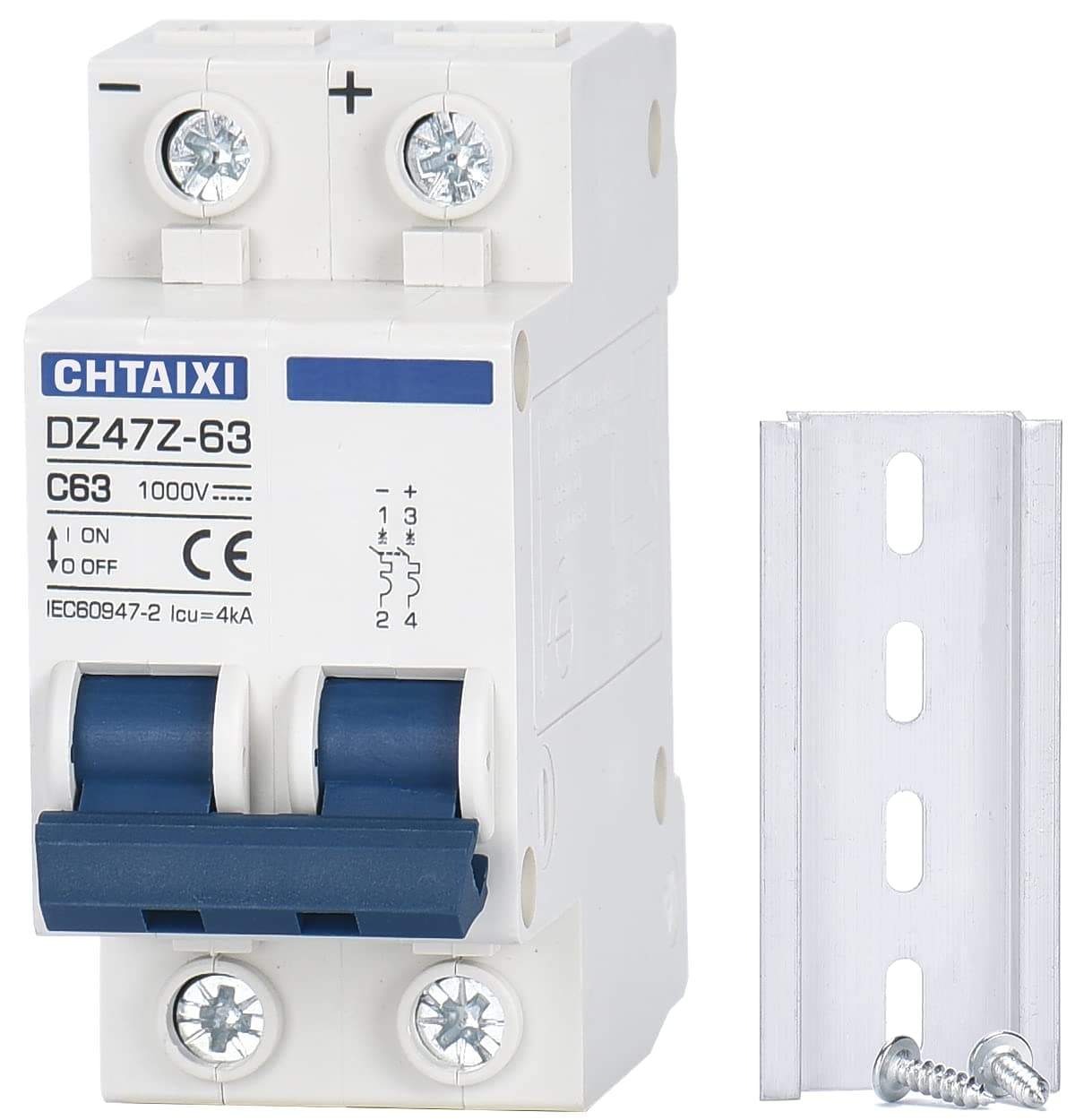

DC Miniature Circuit Breaker, 2 Pole 1000V 63 Amp Isolator for Solar PV System, Thermal Magnetic Trip, DIN Rail Mount, Chtaixi DC Disconnect Switch C63
