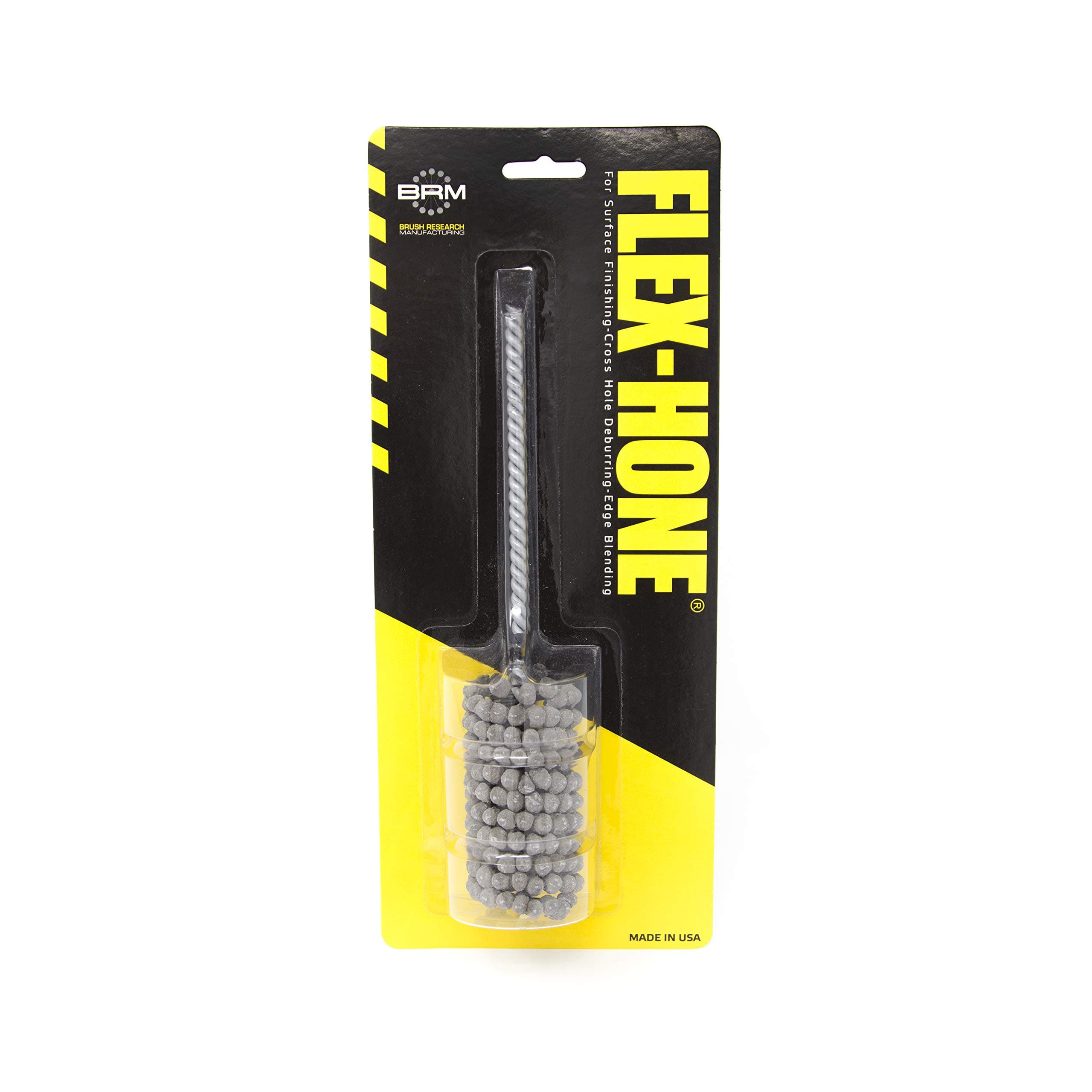

Brush Research BC112320AO FLEX-HONE®, 1-1/2" (38mm) Diameter, 320 Grit, Aluminum Oxide, For Aluminum, Brass, Bronze and Softer Non-Ferrous Materials

I decided to rebuild my snowmobile motors as preventative maintenance, and was replacing pistons and rings. The piston suppliers all recommend cylinder prep with these type of ball hones. I bought two hones, one for my 500 cc sleds and one for my 800 cc sled. There are many grits and compounds available, but for Nickasil cylinders these 320 grit Aluminum Oxide versions are recommended. They worked perfectly for de-glazing and refreshing the crosshatch to help in proper cylinder oiling and piston and ring break-in. Choose the ball hone size you need based on the actual cylinder bore diameter. If you buy the hone that matches your diameter it is actually slightly oversized to create just the right amount of pressure to the cylinder wall for effective honing. Using these ball hones takes a bit of technique, but in a home shop environment I found doing the honing in a 5 gallon bucket worked to contain the lube oil from flinging all over the shop, I also made a short spacer to place under the bottom of the cylinder edge inside the bucket to lift the cylinder just enough off the bottom to allow the hone to effectively reach through the cylinder with a full stroke, but not protrude too far through and allow the balls to wrap the lip and bind. Holding the cylinder solid in the bucket also helped to keep the hone centered within the cylinder as cocking it at any angle while holding the cylinder by hand tended to end up with the hone hooking a port or the lip and stopping the process (my first attempts were a bit of a learning curve). Once I figured out how to hold the cylinder and limit the travel properly the remaining cylinders were easy to complete. If you do bind the hone and twist some of the ball fingers, they are very forgiving, and easy to re-set the fingers, straighten them out, and continue on, being more careful about your process. These hones should last forever if you're only using them periodically in a home shop. Using them per the included instructions left a beautiful surface with correctly angled cross-hatch, and made for a perfect top-end rebuild. These are far better than the old spring loaded stone-hones of old, especially for nickasil. These also have a far less likelihood of catching a port if you keep it centered. And if it does catch one due to your (My) own mistakes, it will simply bend around itself but not cause any damage, unlike the potential damage that could be caused if a stone catches a port with the old style hones. Highly recommend this product and the seller.

Nice product

Top quality hone which created a perfect hone pattern on my motorcycle cylinder block.

It's a fine little brush.

This item was exactly as it was described. Overall good quality. I would not be scared to buy this again if needed.

I purchased this to hone out my aluminum cylinder briggs engine. Worked flawlessly and cross-hatched the cylinder perfectly! Definitely a good buy!

Great tool

Worked very well in aluminum connecting rod but when using on aluminum make sure you heavily lube the aluminum and the hone to prevent gouging the aluminum. And only a few strokes is all it took for a nice cross hatch. it kept the hole true to within 0.0002 to 0.0004. (yes that is ten thousandths) I used 10-30 conventional motor oil per package instructions.
