⚙️ Power Up Your Control Game!

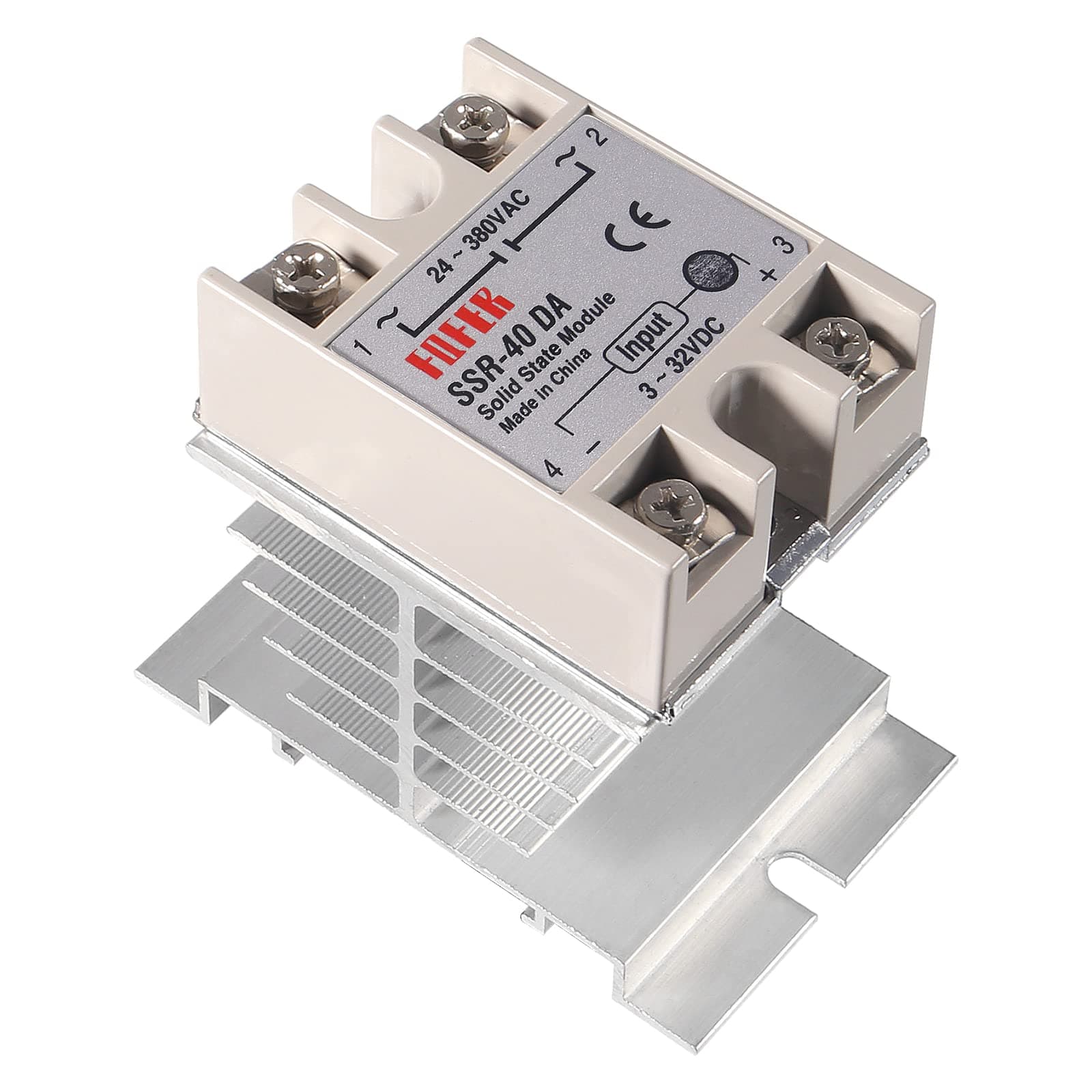

The SSR-40 DA Solid State Relay Module is a high-performance device designed for PID thermostat temperature control, featuring a robust 40A current rating and a wide input range of 3-32V DC with an output of 24-380V AC. Its compact design and included heat sink make it ideal for demanding environments, ensuring reliability and efficiency in various automatic control systems.
| Current Rating | 40 Amps |
| Mounting Type | Bolt Mount |
| Brand | Coliao |
| Operation Mode | Electric |
| Contact Current Rating | 40 Amps |
| Maximum Switching Current | 40 Amps |
| Manufacturer | Coliao |
| Model number | Coliao-SSR-40DA |
| Item Weight | 159 g |
| Package Dimensions | 12.09 x 8.71 x 5.99 cm; 159 g |
| Item model number | Coliao-SSR-40DA |
| Voltage | 380 Volts, 250 Volts |
| Power Source | Corded Electric |
| Are batteries included? | No |
L**.
Relay with heat sink.
Having the relay and heat sink come together helps in designing projects. The relay works well in distributing power in electronics.
S**L
Works great to trigger my power amps from my stereo receiver
I recently purchase a new high-end receiver for my new theater room. My older receiver had a 110v switched outlet that I used to turn on a 110v relay which turned on my power amps. My new receiver doesn’t have a 110v switched outlet, instead it has a 12v assignable trigger output. So I purchased this SSR to trigger on from my stereo and power on my amps. It has worked great for the month or so since I connected it. Silent compared to my old large relay, and doesn’t “stick” on like my relay did occasionally due to the arcing of the contacts.
