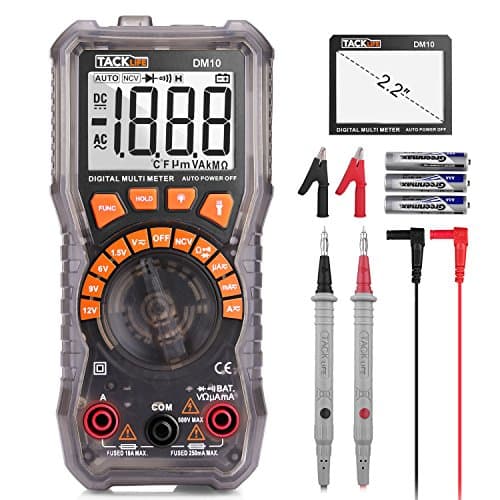

Multimeter, Tacklife DM10 Electrical Tester 2000 Counts Auto-Ranging Amp Volt Ohm Meter Diode and Continuity Tester Voltage Detector with LCD Display and Backlight

الوصف

Specifications Safety/Compliances: IEC61010 CAT. II 600V over voltage and double insulationDisplay: 2.2 inch LCD display; Maximum display 1999Range selection: Auto rangingOverload protection: resistance measurement with PTC to protect circuit.Dimensions: 147mm*71mm*45mm (L*W*H)Battery test: ✔AC/DC Current test: ✔AC/DC Voltage test: ✔Resistance test: ✔Diode test: ✔Continuity test: ✔NCV: ✔Data Hold: ✔LCD Backlight: ✔Flashlight: ✔Auto Power 0ff: ✔Continuity Buzzer: ✔Battery Test:- 1.5V Battery: Resolution: 0.001V; Built-in load: 1.8KΩ- 6V Battery: Resolution: 0.01V; Built-in load: 150Ω- 9V Battery: Resolution: 0.01V; Built-in load: 910Ω- 12V Battery: Resolution: 0.01V; Built-in load: 62ΩDC Voltage:- Range and Accuracy: 200mV ± (0.5%+2); 2/20/200V ± (0.5%+2); 600V ± (0.8%+2)- Input Impedance: 10 MΩ- Overload Protection: 600V DC (RMS)AC Voltage (50Hz - 400Hz):- Range and Accuracy: 2/20/200V ± (1%+3), 600V± (1.2%+3)- Input Impedance: 10 MΩ- Response impedance: Average (sine wave RMS)- Overload Protection: 600V AC (RMS)Resistance:- Range and Accuracy: 200Ω ± (0.8%+2); 2/20/200KΩ ± (0.8%+2); 2MΩ ± (0.8%+2), 20MΩ ± (1%+2)DC Current :- Range and Accuracy: 200/2000μA ± (1.5%+3); 20/200mA ± (1.5%+3), 10A ± (2.0%+5)AC Current (50Hz - 400Hz):- Range and Accuracy: 200/2000μA ± (1.5%+4); 20/200mA ± (1.5%+4), 10A ± (2.5%+5)- Overload Protection: μA/mA Range: F250mA (Fast blows), 10A Range: F10A Fuse (Fast blows).- Maximum Input Current: mA jack: 250mA, 10A jack: 10APackage Includes1x Tacklife DM10 Digital Multimeter1x Screwdriver3x 1.5V AAA Batteries1x User's Manual (English, German, French, Spanish, Italian and Japanese)1x Test Leads with Alligator clip (Pair) 1x 24-month Warranty Card
