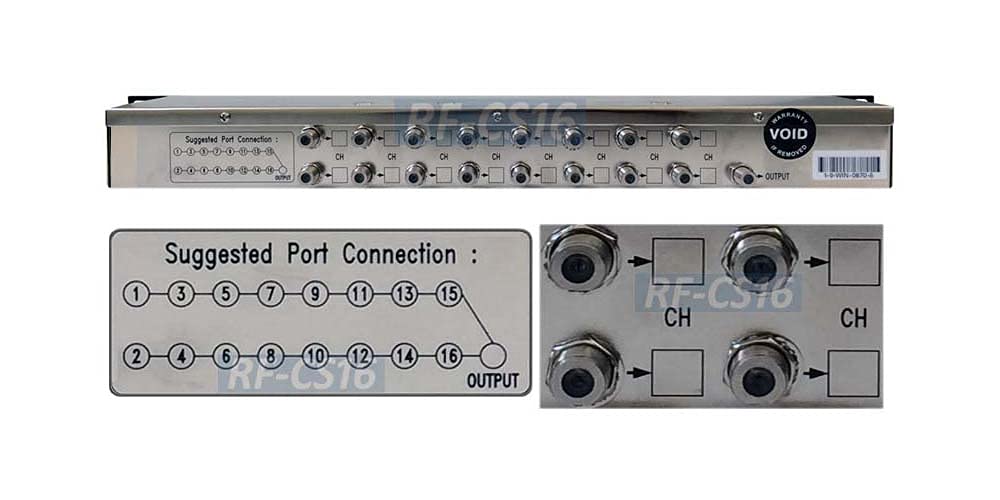

Professional 16-Channel CATV Combiner 1U Rack-Mountable
This coax TV combiner is a professional quality passive output combiner designed fro private cable networks employing multiple modulators and processing equipment.

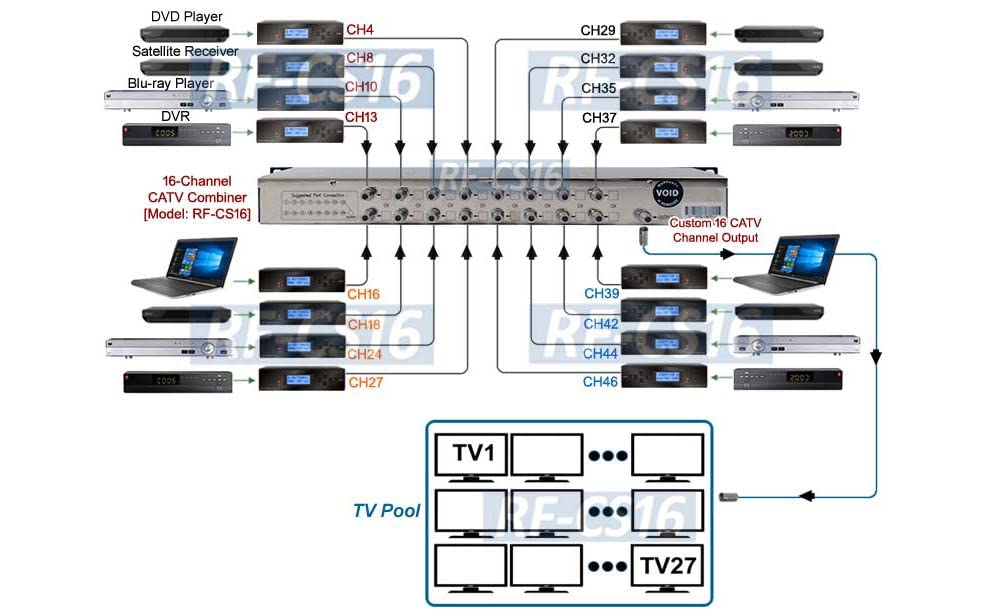

It is a high quality passive coax signal combiner capable of accepting up to 16 adjacent TV channels for use with today's head-end systems.

Ideal for CATV, surveillance CCTV, antenna TV and satellite TV coaxial operations.

Wide Frequency Range Support
This unit supports a broad frequency range from 5 to 1000MHz. Most of the coax TV signals can be handled by this unit.

High Isolation
This CATV combiner provides high Port-To-Port isolation between coax signals so the combining will have no potential of channel interaction.

Each adjacent TV channel can be transmitted in stable quality with no noise or interference incurred.

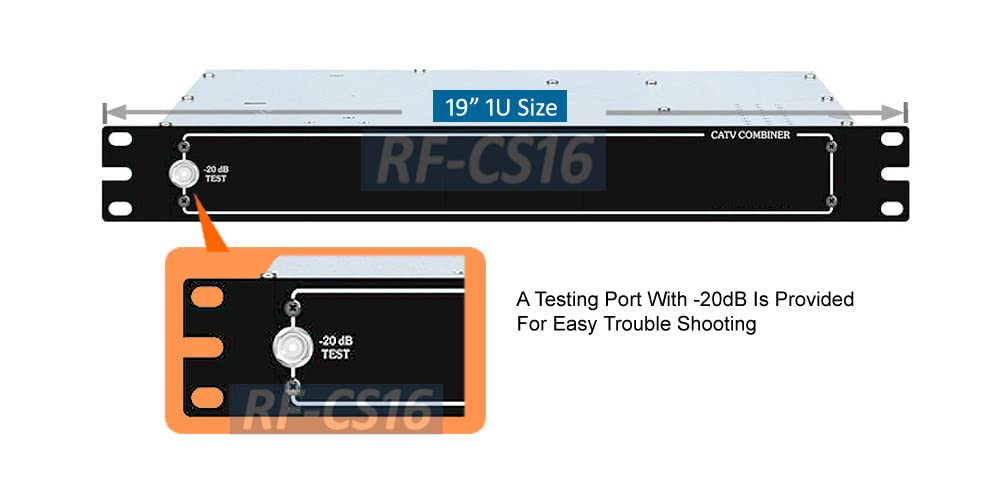

-20 dB Test Port
A front-panel -20 dB test port (75-ohm "F" type connector) allows testing of the unit's output without interrupting the service and easy for troubleshooting.

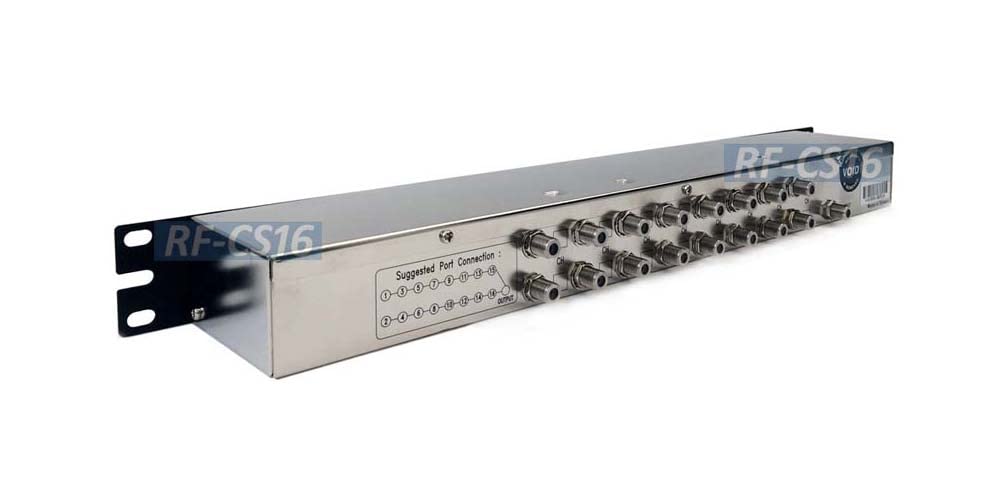

1U Rack Mountable
This CATV combiner is built in size of 19", which is 1U rack mount ready for setup with other head-end rack systems.

Premium 16-Channel Coax CATV Combiner 1U Rackmount Ready
