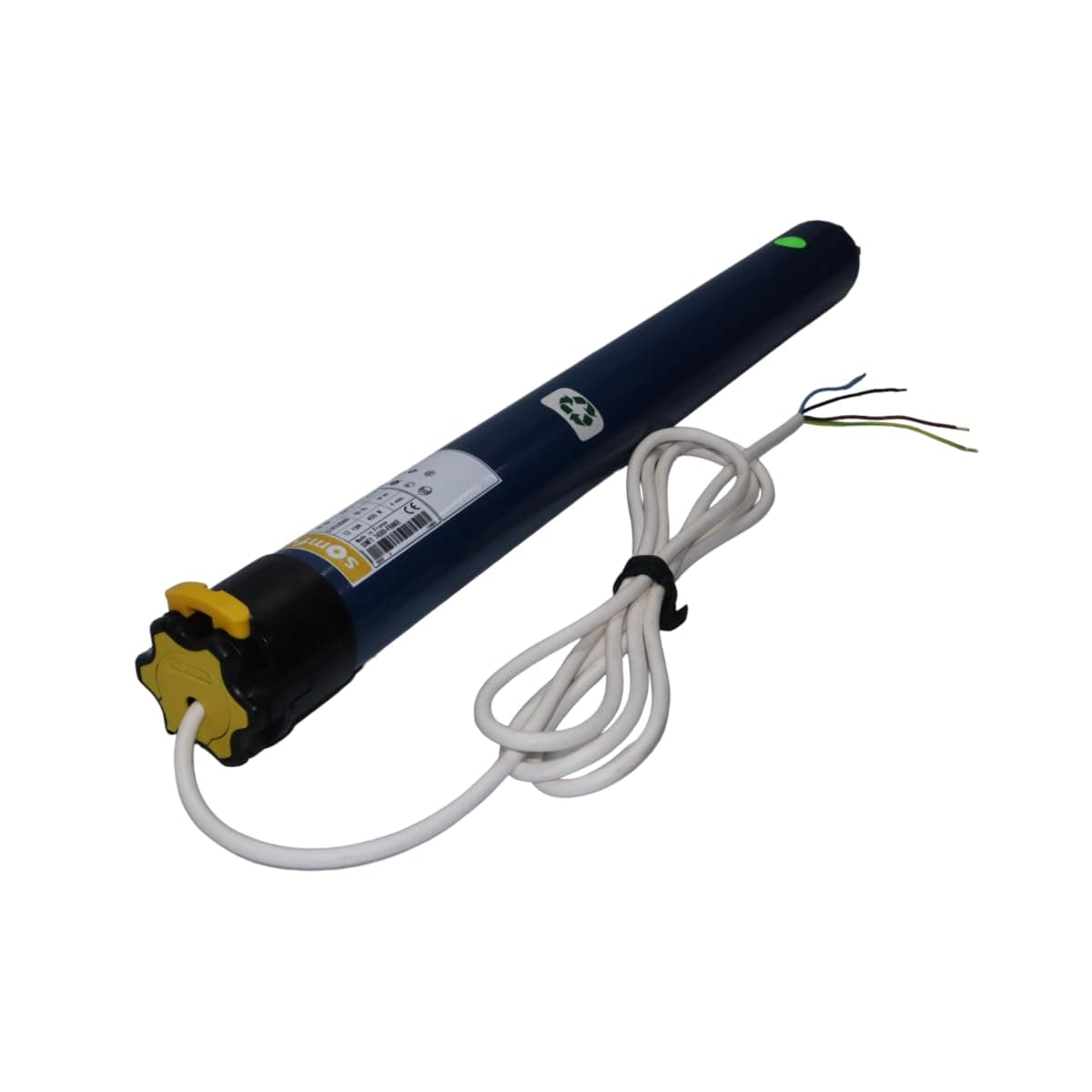

LT60 HIPRO WT Somfy motor for shutters and awnings (JUPITER 85/17 | mod. 1165008)

الوصف

LT60 HIPRO WT Somfy motor for shutters and awnings The Somfy LT60 HIPRO WT roller shutter motor is a motor for roller shutters and awnings equipped with push-button limit switches on the motor. In addition, the tubular operator comes with power cord and push-button limit switch. The advantage of buying a roller shutter motor from the Somfy line is to have an extremely easy installation of the product thanks to its 6-position star head. TECHNICAL CHARACTERISTICS Quick adjustment of the push button; Easy installation thanks to the 6-position star head; Wide range of pairs available. MODEL SIRIUS 80/12; CODE 1164021; L1 614 mm; L2 597 mm; POWER 80 Nm; SPEED 12 rpm; THEORETICAL CAPACITY 254 Kgf; ABSORBED POWER 290 W; DIAMETER IMO TUBE Ø 63 × 1.5 mm. JUPITER MODEL 85/17; CODE 1165008; L1 659 mm; L2 642 mm; POWER 85 Nm ; SPEED 17 rpm; THEORETICAL CAPACITY 270 Kgf; ABSORBED POWER 400 W; DIAMETER. RO MINIMUM TUBE BO Ø 63 × 1.5 mm.
