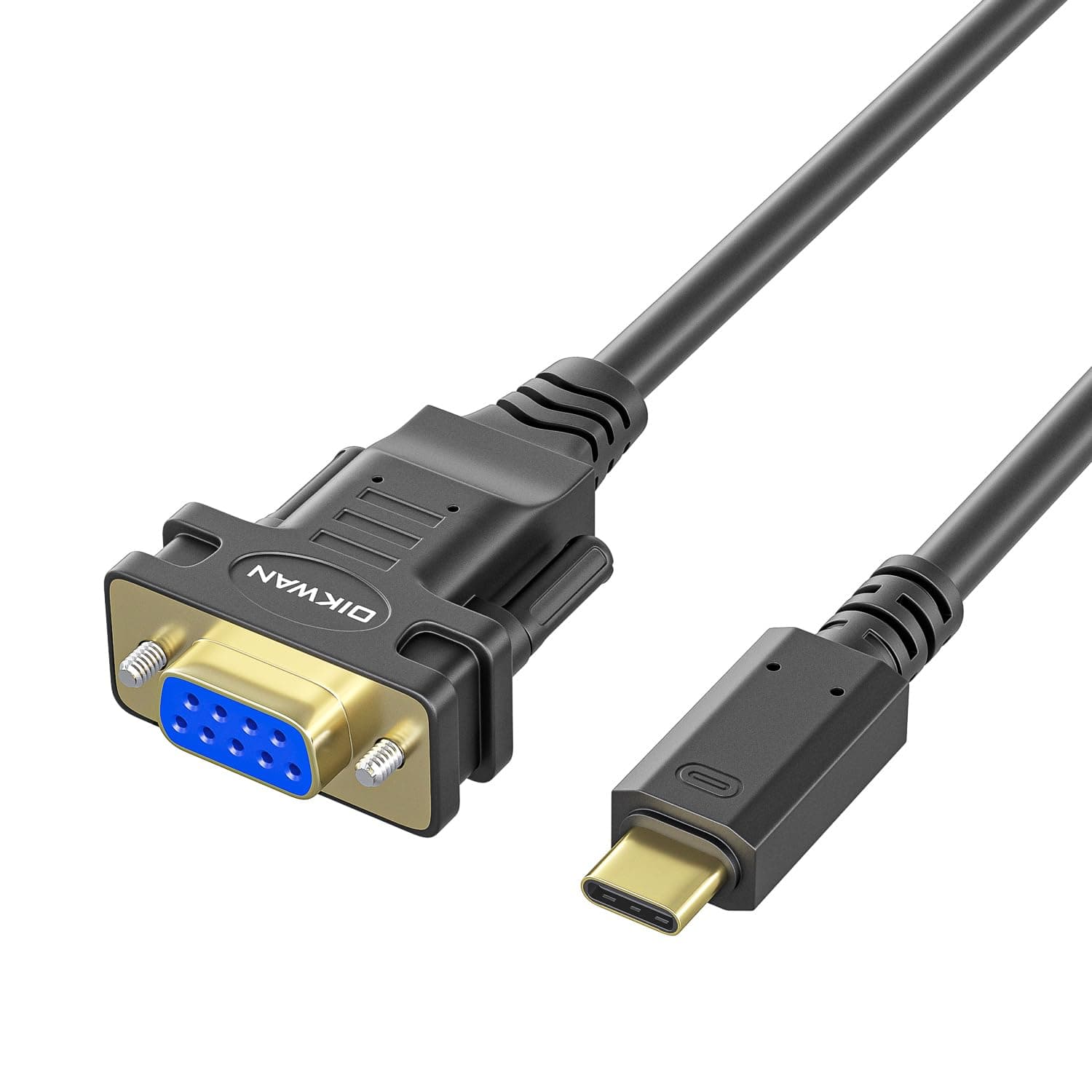

USB-C to Serial Adapter, 6FT RS232 DB9 Female Converter Cable, FTDI Chip, Compatible with Windows, Mac, Linux, Type C Device, Industrial Applications, Data Communication

I used this on an ASRock N100DC-ITX motherboard. It identifies as a FTDI device and works perfectly with Android.

Ok

So I got this as most of my laptops these days seem to have more USB-C then not, so to not fiddle with an adapter I got this console cable. The only thing is it's pinout was a little different from the standard ones I've used, as the RX/TX pins are swapped to my hardware. I could whip up an adapter which is what I'll end up doing, but definitely something to note. Otherwise with my windows machine it came up fine and worked with putty no problems. Overall good tool to have, just verify pinout as always.

I am reviewing the product "OIKWAN USB C to Serial Adapter Cable " on 4 May, 2024. Bridging the gap between vintage and modern electronics, USB-serial adapter cables are a frequently needed IT Supply for those still rocking vintage equipment. In my case, I have a number of analog video closed-caption decoders that output decoded text over serial port, which I wanted to incorporate in my home studio. This model offers two features that make it stand out. First is the use of the FTDI-FT232RL chipset, widely regarded as the finest implementation of this type of conversion available. This ensures the widest compatibility with a huge variety of old gear that communicates over a serial port. Second, is the USB interface is a type-C, at the time of this writing is still a relatively rare feature in a serial adapter cable. USB-C is faster and more robust, and is likely to eventually overtake mini/micro-B in ubiquity. So in a sense this adapter cable is a nod towards future-proofing. In my case, the decoders interfaced perfectly with a USB-C equipped PC and the capture was flawless. The Oikwan model is a good value for an essential item pairing a modern interface and a class-leading chipset. I am pleased to give it my unreserved recommendation.

There is no doubt that this is likely a niche item most people won't ever need. I was actually quite surprised to find it listed on Vine to request. My company happened to recently have a communication closet issue where the room overheated. After bringing most systems back online we had one system (An Infoblox NetMRI) system which failed to come back up. In order to confirm whether or not we could save the device we needed a console cable to plug directly into it. This cable did the trick. We had a bunch of DB9 male to USB A cables on hand but needed DB9 female to USB. This cable did work to get us into the device which was unfortunately unsalvagable. Either way the cable did what it was supposed to. I did forget to snap pictures of it before leaving it with our technicians but can attest that it looks just like the pictures in the listing show and seems to be well made. If you also find yourself using a modern day administrative laptop which has mostly or only USB C ports and need to get into a DB9 serial based device, I would recommend giving this a shot!

I am positive I have a DB9 male port on one side and USB type C on the other yet nothing I plug this cable into works ! Not simply a lack of communication but a complete lack of anything . No power , no comm , nothing ! Another item getting returned . They warn people with "frequently returned item" yet why do they keep selling it ?

This adapter uses an FTDI FT232R chip. As far as I can tell, it's a genuine FTDI part. It worked on Windows and Android (using the Serial USB Terminal app) with no additional drivers required. Just plug in and away you go. The DE-9 connector on this is wired up as DCE. Basically, it acts like it has a built-in crossover cable. This is good if you want to plug it directly into a computer, or a peripheral which has a DTE-pinned connector. If none of this makes sense, I'd brush up on your RS232 knowledge before purchase. Basically, though, the pinout is expected for being a female DE9 plug. Build quality is very good. The cable itself is pretty thick, and the materials feel sturdy. My only concern is the shell on the USB-C connector. It's on the large side, and while I didn't have trouble, you might have clearance issues with some phone cases. I really don't have anything to complain about, here. It works well, and is built nicely. The price is also very reasonable. I'd definitely recommend if you need to work with an old serial device from a modern laptop or phone.

This worked well for my use case of connecting to firewall appliances. However, it did not produce an output for various switches. After adding an in-line null-modem adapter to cross over the transmit and receive pins then it started working fine. Just something to keep in mind before purchase to ensure that this will work for your application.

USB-A側で凹凸、USB-C側で凹凸の4つ、計2通りのコンソールケーブルの組み合わせがあるが、いずれもaruba CX6000と通信できず。 aruba CX6000のボーレートは115200なので、それを設定したうえで通信できなかったことも記載しておく。 本製品を含む、以下4商品が該当。 OIKWAN USB Type C to RS232 DB9 Serial Port Adapter Cable FTDI Chipset for Windows 11 10 8 7 Mac Linux OIKWAN USB - RS232アダプター FTDIチップセット付き USB - RS232オス DB9シリアルコンバーター レジスター モデム スキャナー 産業機械 CNC ブラック OIKWAN USB-Cシリアルアダプタ、6 FT RS 232 DB 9マスター変換線、FTDIチップ、Windows、Mac、Linux、C型デバイス、工業応用、データ通信に対応 OIKWAN USB - RS232シリアルアダプター FT232、USB - RS232 金メッキ DB9 シリアルメスコンバーター Windows 10、8.1、8、7、Vista、XP、Linux、Mac OS X 10.6以降に対応 ブラック 金返してほしい。

Bom produto.

I've never had much luck with USB-serial adapters, but this works every time with my MacBook. No software required.
