Product description

Cautions:

1. Wear a dust cover when working to protect personal safety.

2. The machine generates high-voltage static electricity, the workplace and the equipment must be dry when the user in use.

3. The machine must be safely grounded, do not unplug the grounding plug, which is to protect the machine and to prevent electric shock is very important.

4. Plastic powder particles fall into the air, the fire source, there is burning, the risk of explosion, so we must rule out all the hidden dangers, and all the fire source isolation.

5. To avoid the danger, after each use, discharge the needle to the ground clip to discharge.

6. Plastic powder on the ground not to use a vacuum cleaner to remove.

Specifications:

Power voltage: 220 V, 50 Hz

Output pressure: 25 N/S

Power: 3.3 W

Voltage output(adjustable): 30 KV - 50 KV +-/5KV

Power Cord: 16AWG

Air Inlet: 1/4 inch NPT Thread

Require air supply: 10-15 PSI, Dry air 5CFM. AMPS: 0.03 A

Pressure ratio: 6 / 8

Package size: 41.5 x 28 x 22.5 cm(16.34 x 11.02 x 8.86 inch)

Weight: 4 kg (9 lbs)

Features:

1.Sheet metal shell

2.Easy to operate

3.Environmentally friendly

4.Light weight and portable

5.Provides a premium coating

6.Optimal corrosion protection

7.Providing professional performance

8.Produces a more aesthetic and durable finish

9.Can be sprayed for any metal parts

10.Without drying time immediately ready for use

11.Ideal for many automotive, marine, home and garden applications

Packages:

1 x Paint Gun

2 x Plastic Bottles (One Set On The Spray Gun)

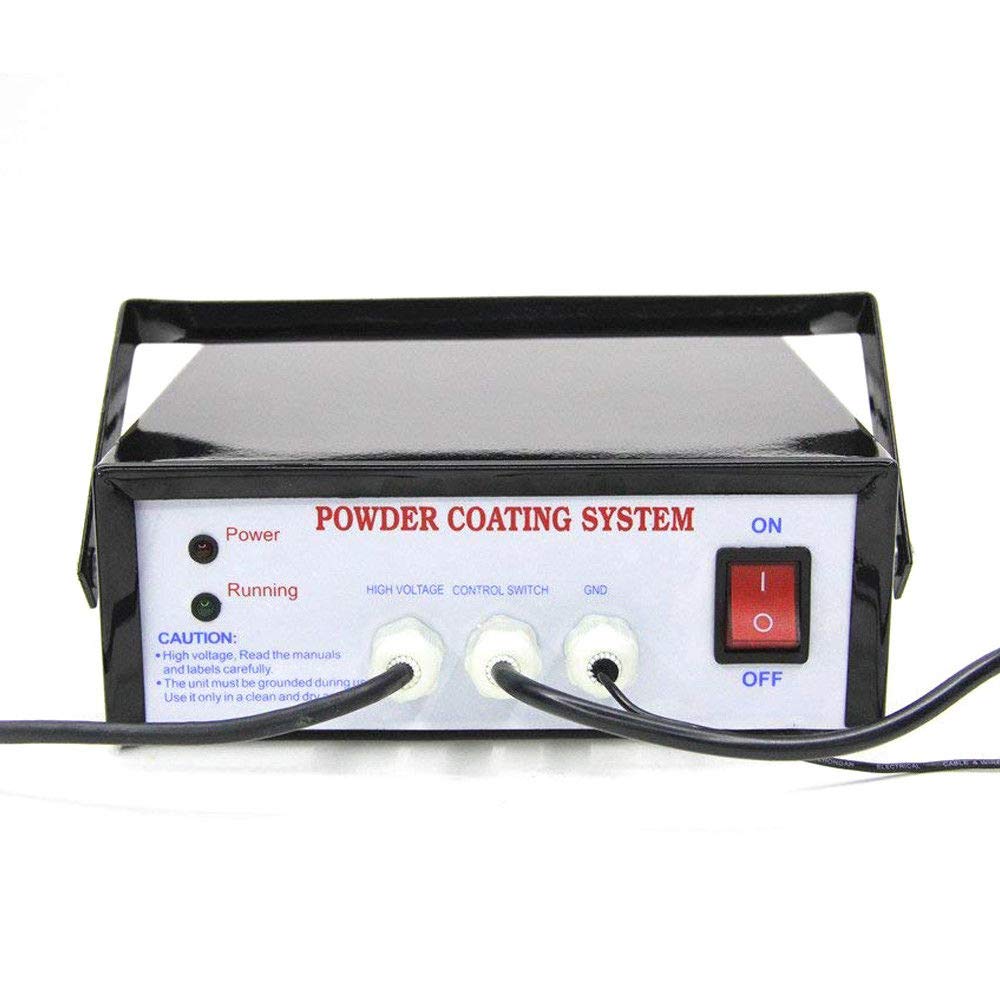

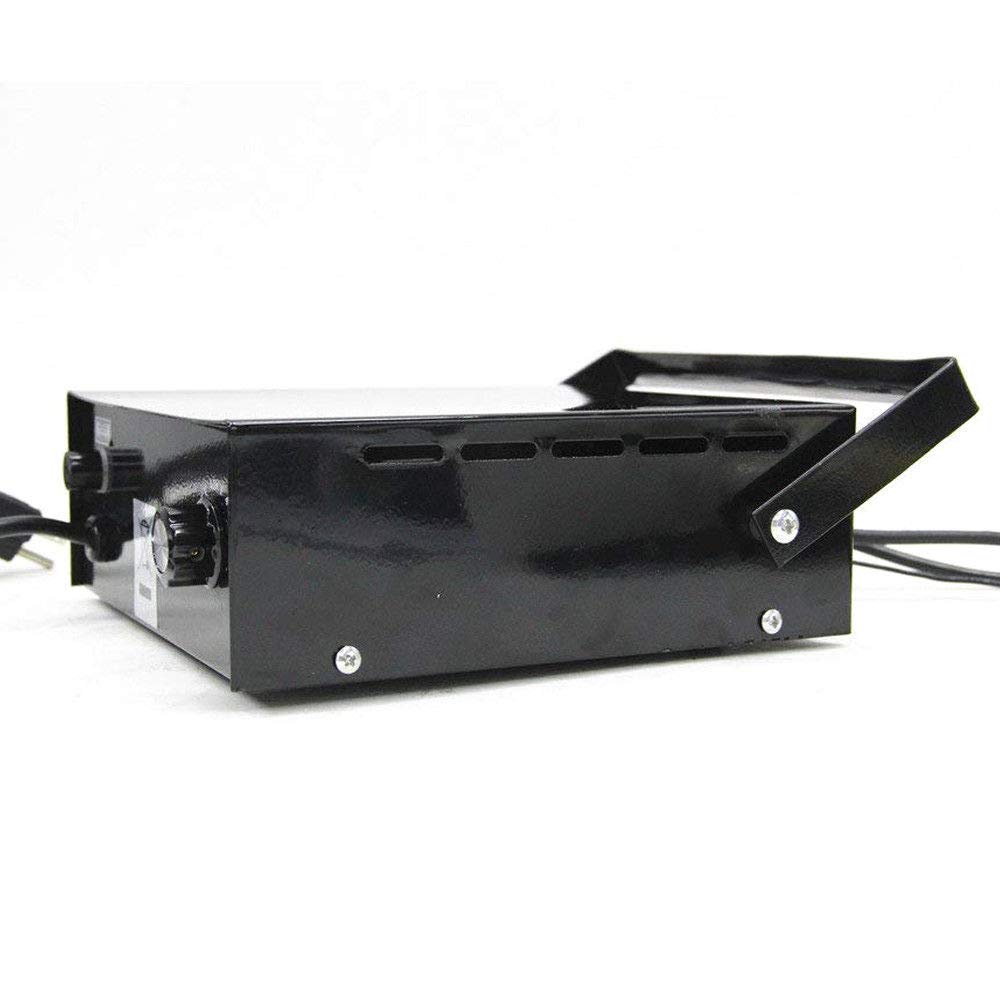

1 x Control Box

1 x Foot Remote Control Switch

1 x Water Vapor Separator

1 x Power Cord

1 x Ground Wire

1 x Switch Line

1 x High-pressure Gun Lead Wire

1 x User's Manual

Legal Disclaimer

✔Our products are shipped from local warehouses. We transport by DHL/YODEL/UPS...
✔ If any problem, do not hesitate to contact us. We will serve you within 24 hours.
✔If you are not satisfied with our product, we will accept your return and refund your refund.

Manufacturer	SHIOUCY
Colour	Silver, White, Black
Style	Gun
Material	Metal
Power Source	Corded Electric

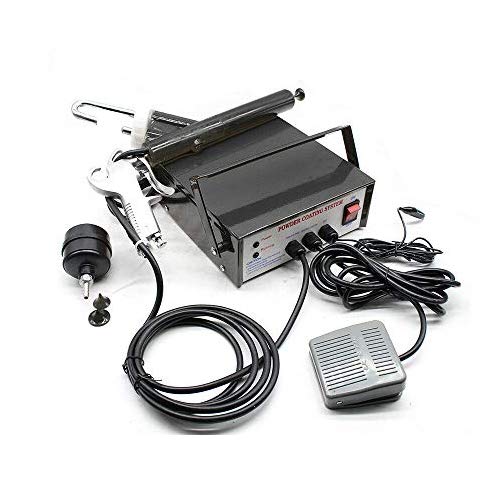

Powder Coating System Metal workpiece Spray Machine DIY Electrostatic Spray Gun Portable Lab Electrostatic 110V Powder Coat Paint System Coating Machine
