⚙️ Drive your innovation forward with Cytron’s MD20A – power, precision, and protection in one sleek package!

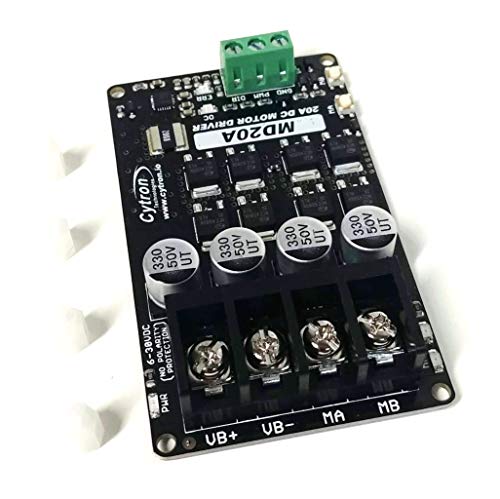

The Cytron MD20A is a high-performance bi-directional DC motor driver supporting 6V to 30V input and continuous 20A current without a heatsink. Featuring PWM control up to 20kHz and compatibility with a wide range of logic levels (1.8V to 12V), it’s ideal for advanced robotics, automation, and mobile applications. Its robust safety mechanisms include overcurrent and temperature protection, ensuring reliable operation in demanding environments.
| ASIN | B07RQFN485 |
| Batteries Included? | No |
| Batteries Required? | No |
| Best Sellers Rank | #285,586 in Tools & Home Improvement ( See Top 100 in Tools & Home Improvement ) #235 in Electrical Motor Controls |
| Customer Reviews | 4.6 4.6 out of 5 stars (11) |
| Date First Available | December 6, 2018 |
| Is Discontinued By Manufacturer | No |
| Item Weight | 4 ounces |
| Manufacturer | Cytron |
| Material | copper |
| Part Number | MD20A |
| Voltage | 12 Volts |
;**)
Excellent H-bridge controller
This unit is well engineered. They made an effort to use the PCB as a heat spreader. It used advanced manufacturing, and rework should not en done lightly. The ratings are mostly conservative. The unit val take huge peak loads. The power connection goes through a relatively small connection path, possibly intended as a fuse. The capacitors help with switching current and reduces power supply glitches. The controller can get confused and need a reset. This suggests there are some nice safety features - TBD. We used a thermal pad to the case to dump heat.
D**R
Works as expected!
Easy to use. Connected to a Teensy 4.1 and is driving a linear actuator. Only tested ro 3 Amps peak but no heat at that level. Best value i coyld find for a controllable DC motor driver over 10A.
M**A
Work very nicely with Arduino
This board has nice on/off button for testing and built with TI chip. PWM input from external source works well and drive the motor with 20Amp rating. Arduino using analogOut function command scale to 0(0%) to 255 (100%) works very good too.
