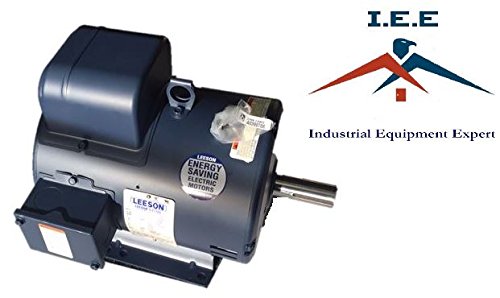

The Leeson 5 HP Single Phase Electric Compressor Motor (Model C184K17DB31A) is a high-performance, reversible motor designed for industrial compressor applications. Operating at 230V with a 184T frame, it delivers 1750 RPM and features capacitor start and run technology. Built for durability and backed by a 12-month warranty, this motor is ideal for professionals seeking reliable, efficient power in a portable package.
| Brand | Leeson |
| Voltage | 230 Volts |
| Recommended Uses For Product | Air Brushing, Blow Cleaning, Nailing, Spraying, Tire Inflation |
| Power Source | Corded Electric |
| Special Feature | Portable |
| Included Components | No included components |
| Item Weight | 88 Pounds |
| Maximum Power | 5 Horsepower |
| Material | Copper |
| Style | Portable |
| AC Adapter Current | 23 Amps |
| Motor Horsepower | 5 Horsepower |
| Model Name | C184K17DB31A |
| Manufacturer | Leeson |
| Part Number | C184K17DB31A |
| Item Weight | 88 pounds |
| Product Dimensions | 24 x 16 x 16 inches |
| Horsepower | 5 Horsepower |
| Item Package Quantity | 1 |
| Speed | 3600 RPM |
| Special Features | Portable |
J**N
Ran great for the first 6 months. No longer starts properly, frequently trips the breaker.
Currently waiting to receive a replay from supplier.
T**N
Good replacement motor for air compressor

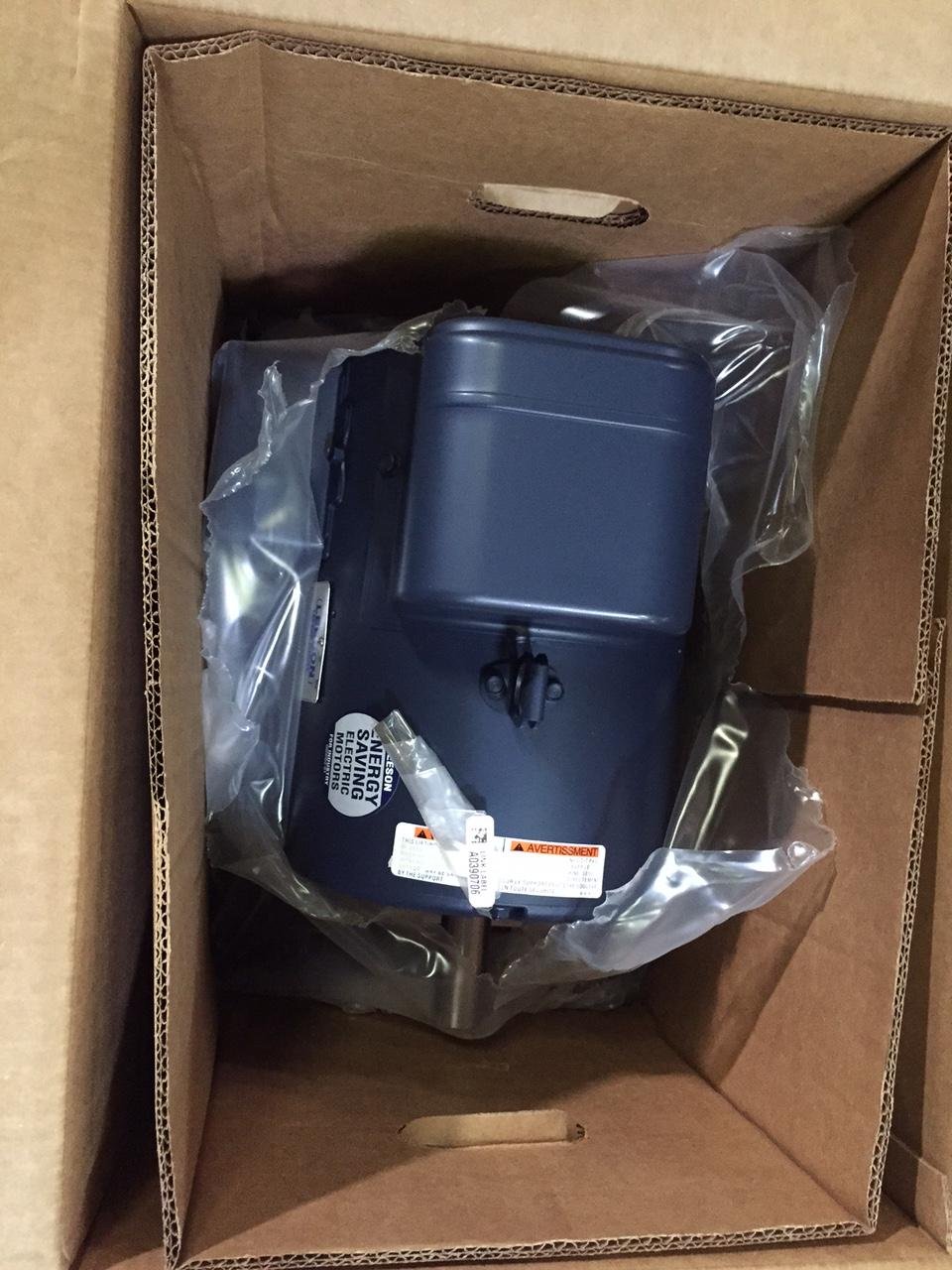

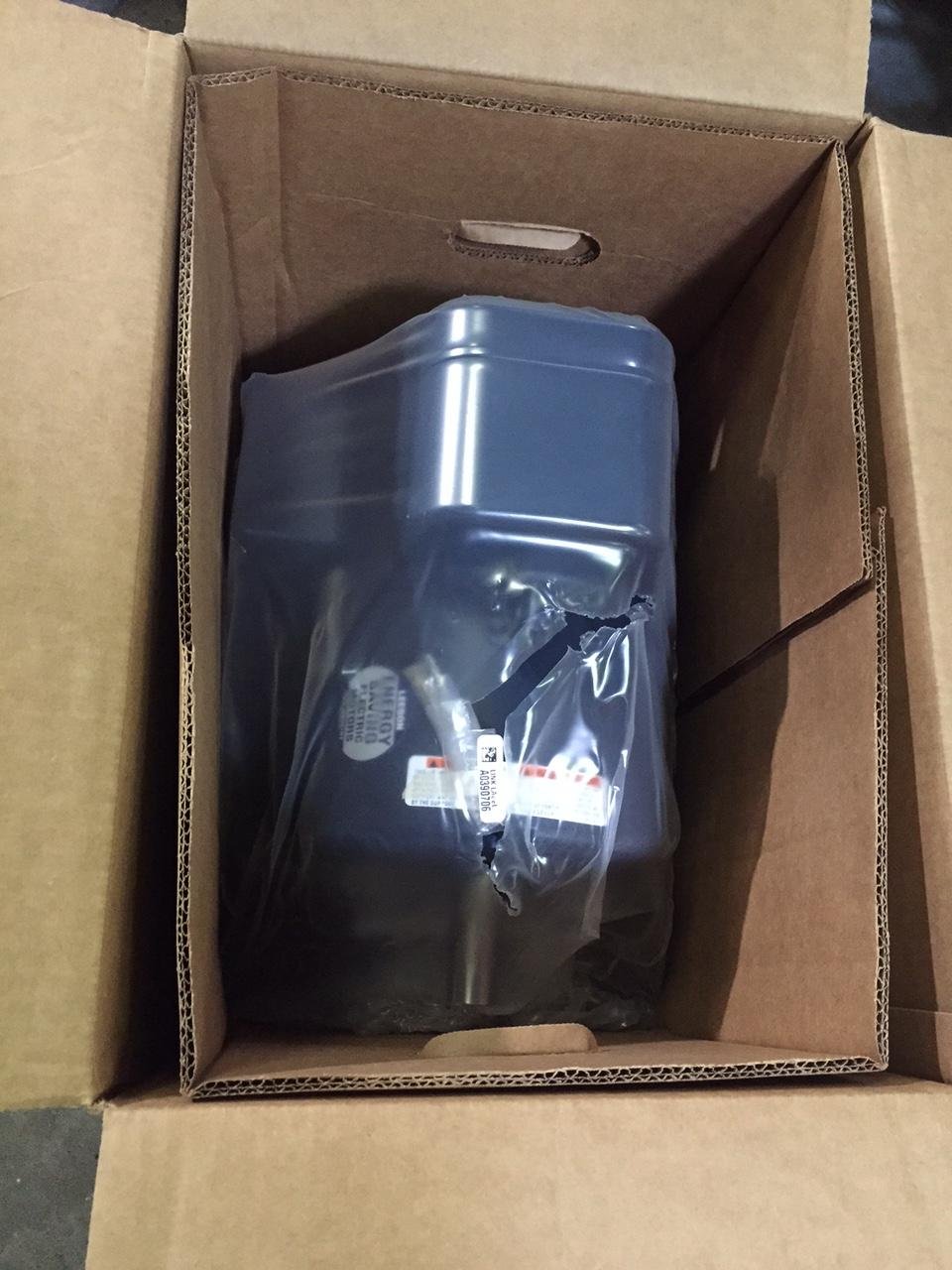

I purchased this 5 HP motor to replace the exact same motor that I installed on my air compressor in 2001. The box arrived properly packed. The motor installed exactly the same as the original and works perfectly. I would like to see better markings on the wires. I had some trouble identifying the wires on the motor when I made the connections. The markings are there, but they are hard to see.
