Description
- Accuracy: 0.2% F.S., 1 LSD
- Selectable Units: lbf(ozf), kgf(gf) or Newtons
- Overload Capacity: 200% of F.S. (Overload indicator flashes beyond 110% of F.S.)
- Power: Rechargeable Ni-MH battery pack or AC adapter
- Battery Indicator: Indicates three charge states high, med and low
- Memory: Non-volative, recall up to 1,000 data
- Setpoints: Programmable high/low setpoints w/ color-coded LEDs & output signal
- Outputs: Outputs USB (virtual COM port), RS-232C, Digimatic and 2 VDC analog output
- Operating Temperature: 32 to 100 F (0 to 40 C)
- Warranty: 2 Years
- Electroluminescent display (ELD) is highly visible in dark locations
- USB (virtual COMport), RS-232C, Digimatic and Analog outputs
- Processes and transmits 2,000 data/sec
- Internal Ni-MH batteries or AC adapter
- Ergonomic design with non-slip grips, heavy duty metal construction
- Real time and peak mode (selectable)
- Overload capacity 200% F.S.
- Overload alarm and output signal
- Multi-langauge program menus: English, Spanish, French, Chinese, German, Italian, Korean, Japanese
- lbf, kgf, and N units are selectable
- Color-coded LED indicators and output signal for Go/No Go testing
- Export gauge memory or save continuous data to USBflash drives (ZTA Models only)
- Display force and displacement data with FA test stand (ZTA Models only)
- 2 Year Warranty
- External switch display hold and clear
- Includes NIST Traceable Calibration Certificate

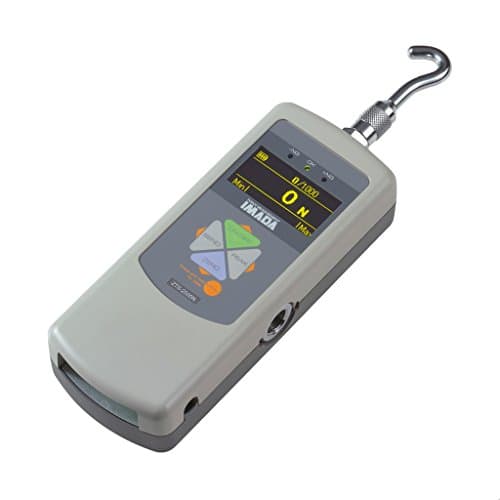

TheZT is a precision instrument thatprovides high performance and advanced functionality, being ideal for compression, peel testing and tension applications. The ZTA-550 ELD Advanced Digital Force Gauge Complete Kit - 550 lbf Capacity (INCLUDES OH-1 HANDLE) is due to the clear, highly bright display, while with the use of the multi-display users can indicate the peak values, time and all the measured values. The data logging software is included in the package, being able to acquire continuous data. The item can also be used for checking peak value, being able to calculate statistics automatically including the maximum and minimum values. The displacement indication feature and the force-displacement analysis is possible when combined with a test stand.
