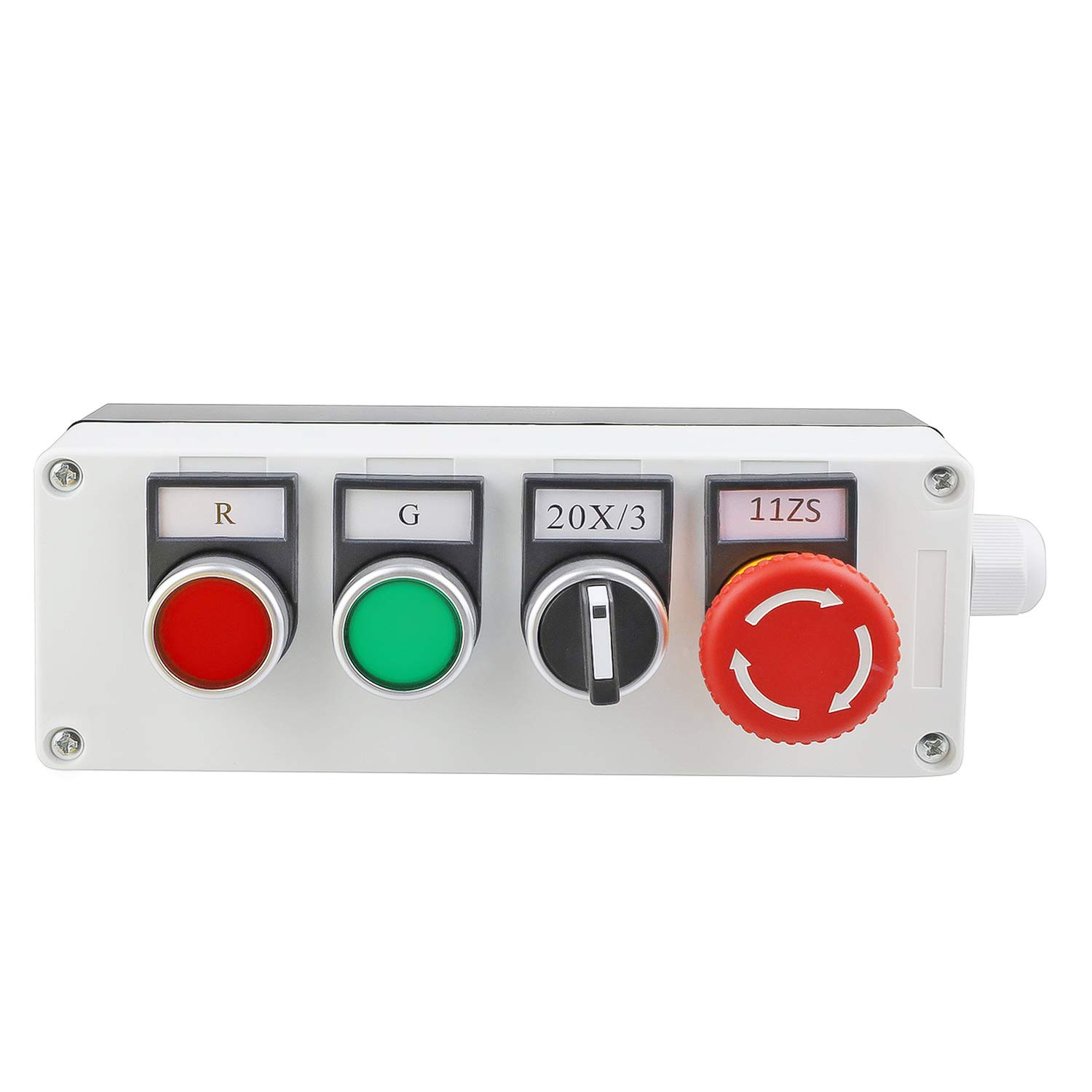

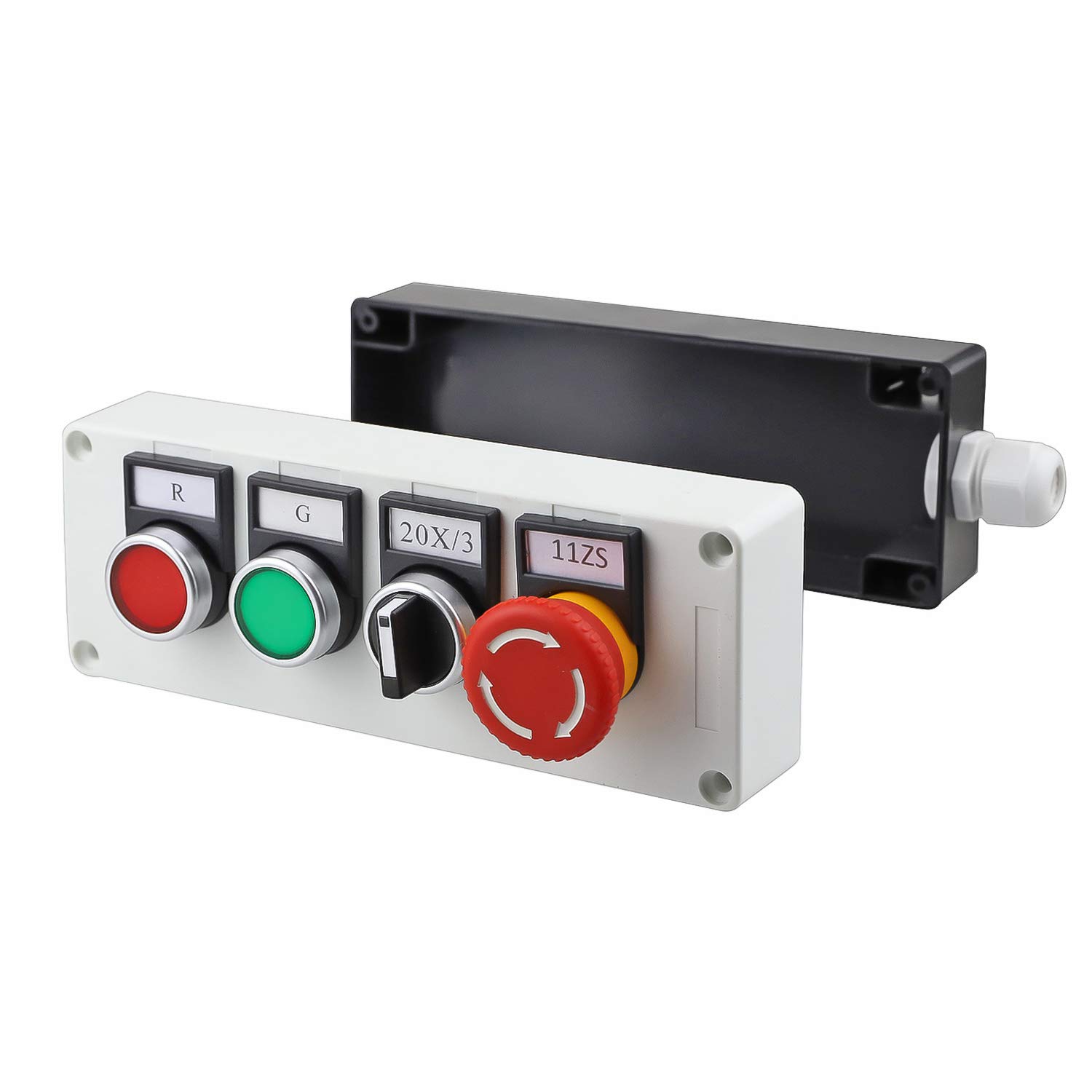

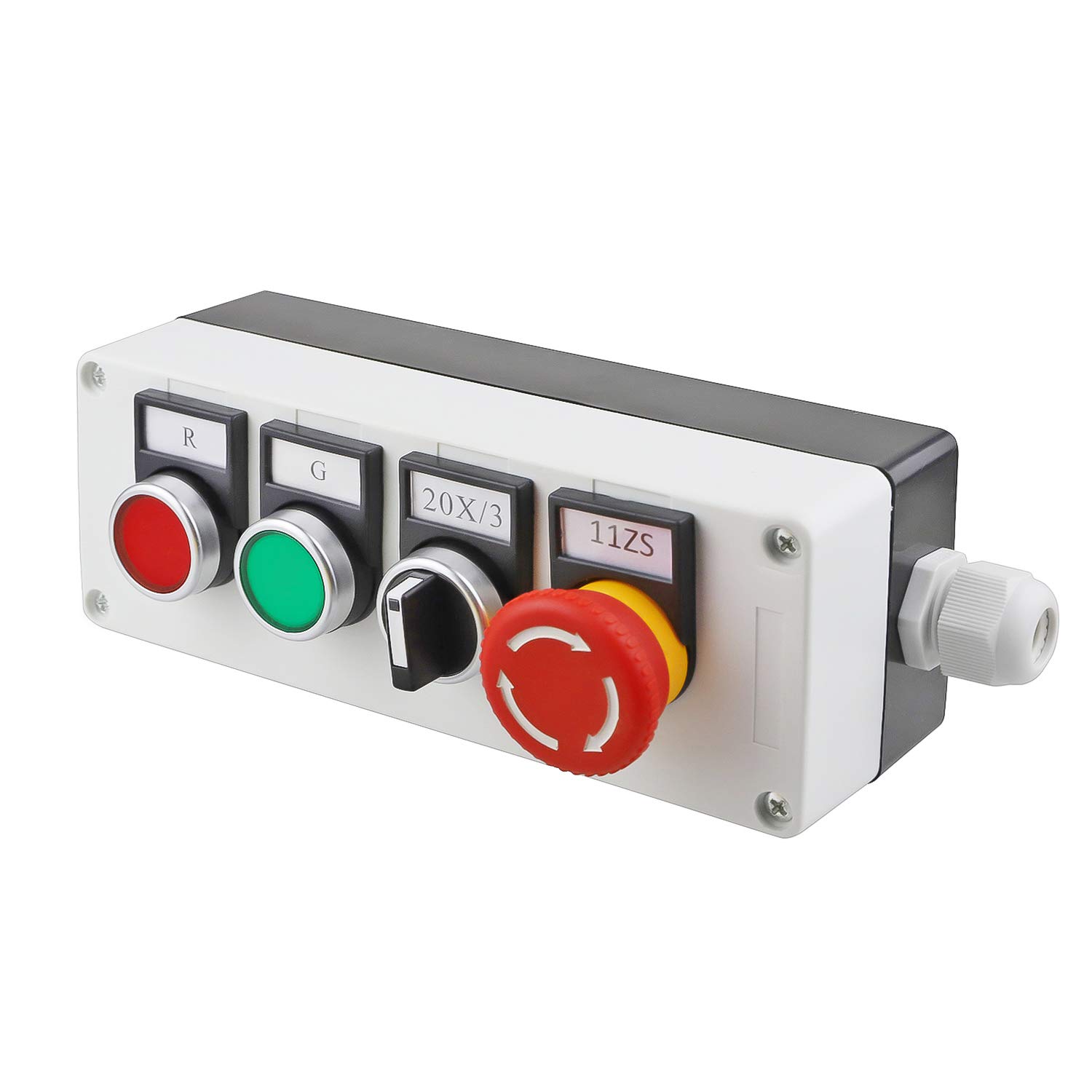

Red Green Momentary Switch, Red Mushroom Emergency Stop Latching Push Button Switch,3 Positions 2NO Latching Select Selector Switch Station Box

I'm going to modify the switches, I want the E-Stop to stop both drives, this has nothing to do with the way it was made, plastic is thin but I think it will work

The quality of the housing is okay, not the best material. The switches looks good. So far so good.

The buttons had a good click to them, and seem like the standard cheaper Chinese components. I’m using this for a hobby project control box, and it’s great for that-definitely not for heavy industrial use. But, it’s a tenth the cost of those ha!

Cons: The enclosure came scuffed. Two bottom holes aren’t tapped.I have yet to test the switches. Will update review once I do. I am hoping for the best.

Feels pretty good for the price. Worth it.

Came with two buttons, a switch and a Estop. You may reconfigure it with other 22mm items.even the box alone is worth the money.

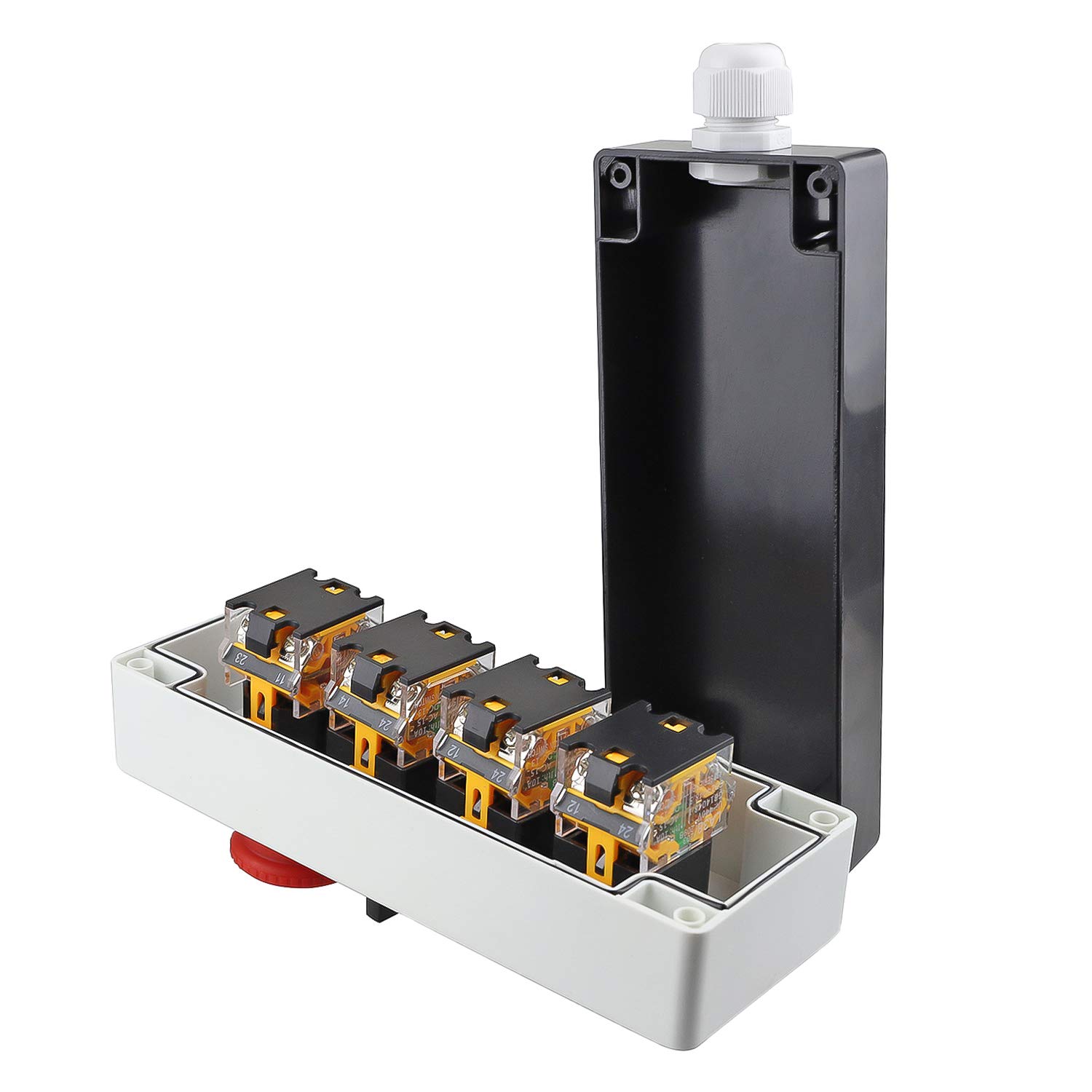

This box is meant for automation as a start/stop/estop panel and I'm sure it would work great to replace an old or damaged switch panel on industrial equipment but I'm using it in my home for a DIY project. I needed 2 momentary switches and an E-stop so this is perfect. Each switch has 4 terminals with 2 being normally open and 2 normally closed. The 3 position switch is normally closed on all terminals in the center position and open when turned in each direction.The relatively low 5A limit makes relays necessary if you are going to be controlling large motors and there may be room in the box for the relays if you get smaller ones. For low current controls, you can wire them directly to the switches, which are fairly heavy duty and have a satisfying click to them when pressed. The box comes with a rubber weatherproofing strip although I don't think this is intended to be used outdoors.There are a lot of potential uses for this box. Besides the obvious applications, you could hook it up to a pneumatic suspension system on a car with the 3 position switch selecting between front and rear or left and right and the red and green switches being used to raise or lower the cylinders/airbags. E-stop could be used to shut off the compressor to keep it from turning on when you want to save battery or avoid making noise.

Used this on a home PLC test bench and it has far exceeded my expectations for the price.
