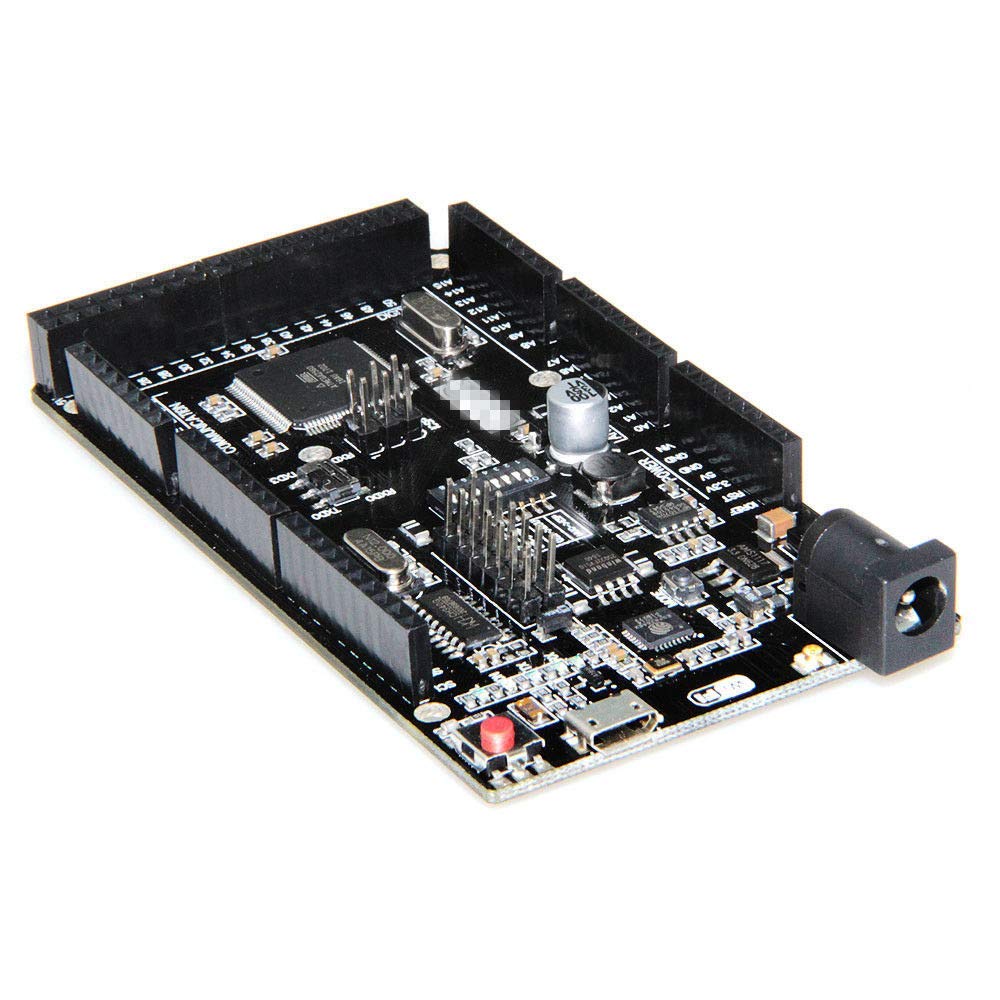

WeMOS Mega + WiFi R3 ATmega2560 + ESP8266 USB-TTL for Arduino Mega NodeMCU

DESCRIPTION:

Full integration on one board: Mega R3 ATmega2560 and WiFi ESP8266 with memory 32Mb. All of the modules can work together or each separately. And everyone has their own pinout headers.

The convenient solution for the development of new projects requiring Uno and WiFi.
Via USB you can update sketches and firmvare for ATmega2560 and for ESP8266. For this on board have the USB-serial converter CH340G.
Use this board is very simple.
The board has DIP-switch, to connect the modules.
For example, to: USB and ATmeg2560, USB and ESP8266, ATmega2560 and ESP8266.
Table DIP- switch:

USB converter CH340G connect to RX0/TX0 of ATmega2560
ESP8266 connect to RX3/TX3 of ATmega2560

Need to install CH340G Driver Download link:
http://www.wch-ic.com/download/list.asp?id=126
http://www.5v.ru/ch340g.htm
Instalation driver guid:
http: www.instructables.com/id/Instalar-driver-para-CH340G/?ALLSTEPS

Descriptions and instructions:
https://robotdyn.com/mega-wifi-r3-atmega2560-esp8266-flash-32mb-usb-ttl-ch340g-micro-usb.html

https://www.instructables.com/id/Arduino-MEGA-2560-With-WiFi-Built-in-ESP8266/

Also some useful information:
https://forum.arduino.cc/index.php?topic=464400.0

PACKAGE CONTAINS:

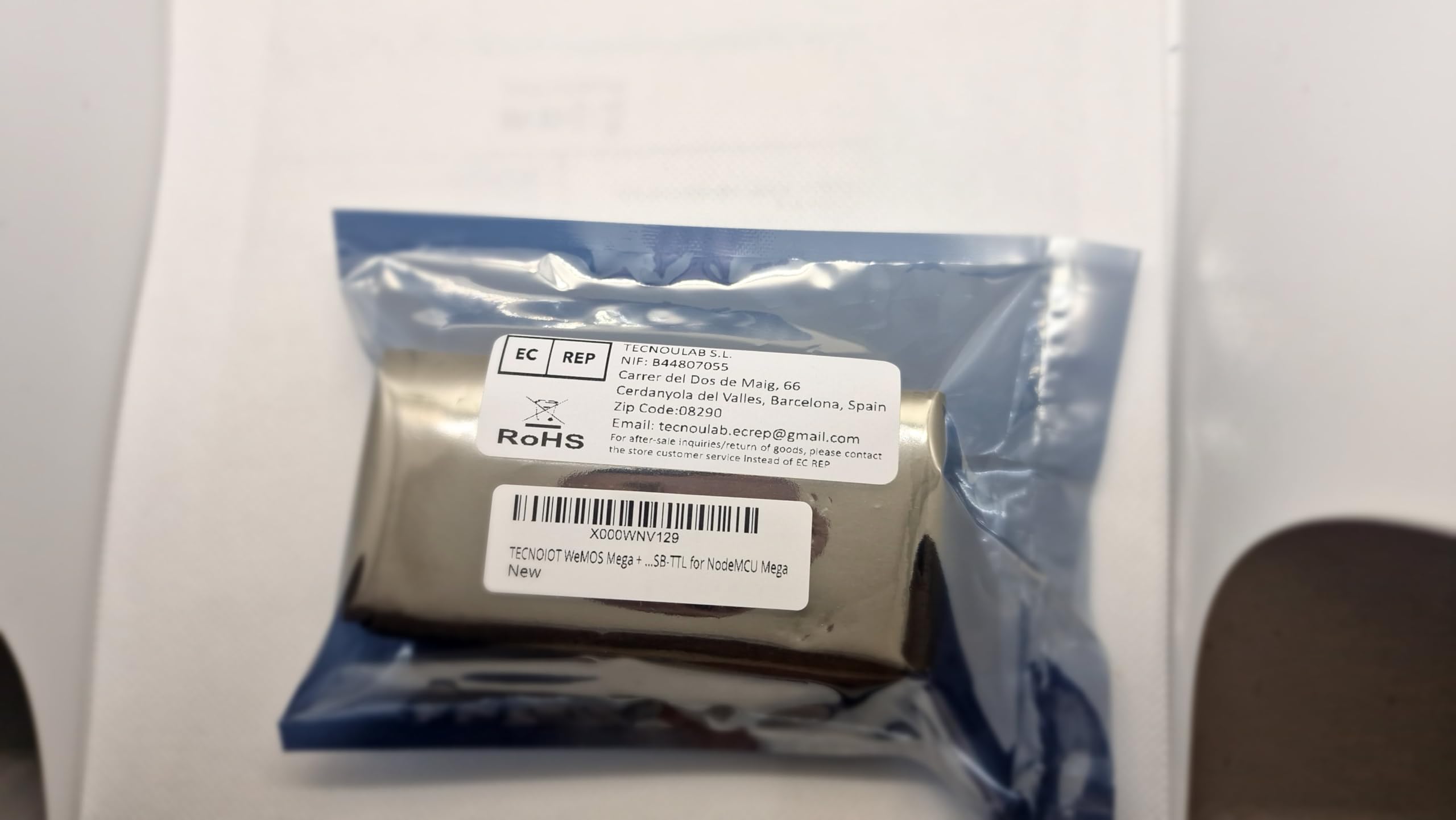

1pc x Mega +WiFi R3 Board

Brand	TECNOIOT
Package Dimensions	15 x 10 x 1.5 cm; 50 g
Item model number	MEGA-WIFI
Manufacturer	TECNOIOT
Series	WeMOS Mega + WiFi R3
Form Factor	compact
Processor Brand	VIA
Processor Speed	16 MHz
Processor Count	2
Memory Technology	LPDDR3
Connectivity Type	Wi-Fi
Wireless Type	802.11bgn
Operating System	Arduino IDE
Are Batteries Included	No
Item Weight	50 g
Guaranteed software updates until	unknown

TECNOIOT WeMOS Mega + WiFi R3 ATmega2560 + ESP8266 USB-TTL for NodeMCU Arduino Mega | WEMOS Mega + WiFi R3 ATmega2560 + ESP8266 (32Mb memory), USB-TTL CH340G. Mega Compatible, NodeMCU, WeMos ESP8266
